Furuno 1920 NavNet Special Features
- 640 x 480 VGA resolution 10.4 ″ displays for the clearest picture possible.
- Full Network System - Sonar, Radar, GPS and Displays can be integrated together.
- Accepts C-Map NT Max Cartography - PLEASE CALL us for details at 1-800-576-7735.
- 1920CNT System include a remote control.
Furuno 1920 Specifications
| # Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Plotter Type |
| 999 with name | 200 Rev. | 8,000 points | BBWGPS Optional GPS |
Color 10.4 ″ | Chartplotter |
| Supports Lat/Lon, Loran TD's | |||||
Furuno NavNet vx2, C-Map MAX Chartplotter!

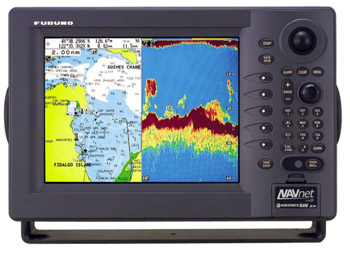

The Furuno NavNet vx2 1920C NT is the perfect network systems for mid-sized to large boats. The heart of the Furuno NavNet vx2 1920CNT is a 10.4” Color TFT LCD, display with a 640 x 480 resolution. The Furuno NavNet vx2 will accept C-Map Max charts for exceptional marine detail. The NavNet 1920CNT vx2 system is very easy to use, with the rotary knob for faster selection and number entry, and every NavNet comes with a remote control. The Furuno NavNet vx2 1920CNT is a Chartplotter and you can add other options or more displays to expand your NavNet vx2 Network System.
BBWGPS NavNet GPS Sensor- The included Furuno BBWGPS GPS/WAAS antenna will add full chartplotter capabilities to your NavNet 1920CNT system. With the BBWGPS you will have ability to mark and save up to 1,000 waypoints, 2,000 routes with maximum 35 points each, and 8,000 track log points. The Furuno NavNet vx2 1920CNT will also allow you to navigate with north up, course up, or auto course up. The NavNet vx2 1920 will have dedicated navigation screens such as; Nav data, course plot, steering and highway display. You can also overlay the radar data on the chartplotter ( PG500R Heading Sensor and BBWGPS required).
DFF1 NavNet Sounder Option- The Furuno DFF1 , optional Digital black box echosounder and a transducer, will add a Fishfinder to your NavNet system. The Furuno DFF1 sounder option is capable of 600 or 1,000 Watts rms and you will need to add a dual frequency 200/50kHz transducer. The DFF1 Sounder will include such features as bottom-lock, bottom zoom, A-scope and marker zoom.
NavNet vx2 Radar- If you want your NavNet System to have Radar, take a look at the following systems as your starting point. The Furuno 1824CNT and 1834CNT, which are Radome antennas or the Furuno 1934CNT and 1944CNT, which feature Open Array Antennas.
Additional cables and a Network Hub may be required for systems with multiple displays and options.
Unit Dimensions 9.3"h x 14.2"w x 7.1"d(without bracket). Warranty: 2 years parts and labor.
