GPSMAP 531S Details
Unit Size: 5.9"H x 6.4"W x 2.9"D
Display Size: 5” Diag.
Weight: Less than 1.75 lbs.
Click here, to view the online Users Manual.
Garmin GPSMAP 531s Color Special Features
- 3000 Waypoints with name and symbol.
- Pre-loaded detailed charts for over 14,000 Inland Lakes
- Audible Alarms for Anchor Drag, Waypoint, Proximity Waypoint and more.
- Waterproof to IPX7 standards.
- Can connect to a DSC VHF radio and send, receive and display data.
Garmin GPSMAP 531s Color Specifications
| # Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Plotter Type |
| 3000 with name & symbol | 50 Rev. | 10000 points 20 saved tracks | 12 Channel WAAS / Internal Antenna | Color 5" Diag. 234 x 320 | Chartplotter |
| Supports Lat/Lon, UTM, Loran TD's, MGRS, Maidenhead and User. | |||||
Garmin BlueChart G2 Vison Charts on SD
 | For more information on the plug and play Garmin BlueChart G2 Vision chart cards click here for a full list of the available regions. |
 |
 |
 |
Finding Where to Fish has Never Been Easier.

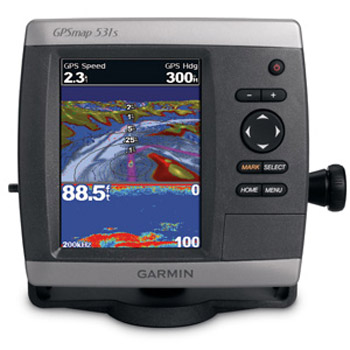

Garmin has taken another step toward making the perfect fixed mount GPS unit for boats looking for the perfect fresh water chartplotter with the release of their new GPSMAP 531s. The 531s has an ultra-bright color 5” diagonal display that boasts high resolution and with new digital design you can expect lightning fast screen redraws. The 531s’s display will also automatically dim for easy readability in changing light conditions. The GPS 531s comes with a high sensitivity built-in GPS antenna to accurately show your position on Garmin’s latest Inland Lake detail. The Inland Lakes detail covers over 14,000 inland lakes showing depth contours, boat ramps, mile markers, hazards and marinas.
The GPSMAP 531s features a dual beam, 400 watt sounder. Included with the 531s is a transom mount transducer with depth and temp capability. With the transom mount transducer; the GPSMAP 531s can give you depth readings to 900 feet. Other features of the 531s include 2X, 4X and bottom lock zoom, and Garmin’s new Auto Gain technology which enhances target visibility and simplifies the operation. While using the dual beam transducer, the Garmin 531 will also give you a round flasher page for temp readings.
The GPSMAP 531s also features audible alarms for anchor drag, arrival to a waypoint or destination, 10 proximity waypoints, off-course, and clock as well as low battery voltage. The Garmin 531 also has loads of memory for waypoints and tracks; storing up to 3,000 waypoints with name and graphical symbol and 10,000 track log points with room to save up to 50 tracks. If you want to save routes, the 531s can store 100 of them all reversible with up to 300 per route.
When connected with a DSC capable VHF radio, the GPSMAP 531s can graphically display the positioning data received from the radio. Other features include built in tide and celestial data, back up of user data on a data card, and a Housing that is waterproof to IPX-7 standards.If you also bring your boat to coastal waters, the GPSMAP 531s is compatible with the optional Bluechart G2 Vision Cards. The G2 and G2 Vision cards will enhance the Costal and offshore water detail. The Garmin G2 information will include coastlines, shaded depth contours, navaids, port plans, wrecks, restricted areas, tides and current information. With the purchase of the G2 Vision Card, the mariner will be able to see “real world” photos of ports, harbors, marinas, waterways, navigational landmarks and other points of interest. The G2 Vision card also enables the mariner to view 3D perspectives above and below the waterline. Another new feature that Garmin has unveiled with the 531s is called Auto Guidance technology. This feature helps the user navigate with the best possible route.
The Garmin GPSMAP 531s also compatible with the optional GXM 51 antenna for real time weather data from XM. The XM Satellite Weather is a monthly subscription that will give you access to Real Time weather such as NEXRAD radar, current weather conditions and forecasts, as well as sea surface temperatures, wind and wave direction, wave height, lightning and much more. Monthly subscriptions is required through XM and plans can be viewed at this link.
