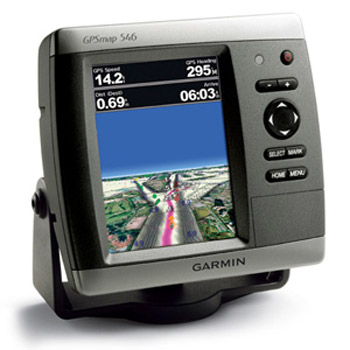

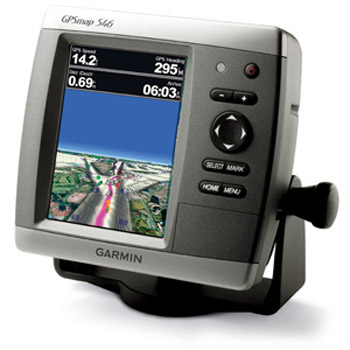

Garmin GPSMAP 546s Details
Unit Size: 5.9”H x 6.4”W x 2.9”D
Display Size: 5” Diag.
Weight: Less than 1.75 lbs.
Click here, to view the online Users Manual.
Garmin GPSMAP 546s Color Special Features
- Built-in 500 or 1000 Watt Sounder.
- U.S. Bluechart g2 data pre-loaded for detailed Marine charts for coastal US including Alaska and Hawaii.
- Audible Alarms for Anchor Drag, Waypoint, Proximity Waypoint and more.
- NMEA 2000 Certified for seamless interfacing.
- Compatible with GMX-51 for XM Weather and Audio.
Garmin GPSMAP 546s Color Specifications
| # Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Plotter Type |
| 3000 with name & symbol | 100 Rev. | 20,000 points 50 saved tracks | 12 Channel WAAS / Internal Antenna | Color 5" Diag. 640 x 480 | Chartplotter |
| Supports Lat/Lon, UTM, Loran TD's, MGRS, Maidenhead and User. | |||||
Garmin BlueChart G2 Vison Charts on SD
 | For more information on the plug and play Garmin BlueChart G2 Vision chart cards click here for a full list of the available regions. |
 |
 |
 |

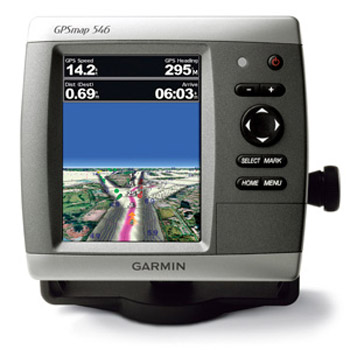

5” Full VGA, Color Chartplotter/Sounder with XM Audio and Weather Capability!
If you have a boat that is between 17 and 25 feet, and you want an all-in-one GPS/Fishfinder the Garmin GPSMAP 546s is the perfect unit for you. Not only is the 546s a chartplotter and a 500/1,000 watt fishfinder, it can also accept the optional GXM-51 antenna for real time weather and audio from XM. The 546s has an ultra-bright color 5” diagonal VGA display that boasts 640 x 480 resolution and fast processors for lightning fast screen redraws. The 546s' display will also automatically dim for easy readability in changing light conditions. The GPS 546s comes with a built-in high-sensitivity GPS antenna to accurately show your position on Garmin’s latest G2 chart detail and built-in satellite imagery for coastal United States, Alaska, Hawaii and the Bahamas. The Garmin G2 information will include coastlines, shaded depth contours, navaids, port plans, wrecks, restricted areas, tides and current information.
For even more detail the GPSMAP 546s is compatible with the optional Bluechart G2 Vision Cards. With the purchase of the G2 Vision Card, the mariner will be able to see “real world” photos of ports, harbors, marinas, waterways, navigational landmarks and other points of interest. The G2 Vision card also enables the mariner to view 3D perspectives above and below the waterline. Another feature that Garmin included with the g2 Vision Chart and 546s is called Auto Guidance technology. This feature helps the user navigate with the best possible route.
The GPSMAP 546s features a dual-frequency, 500 or 1,000 watt sounder. Included with the 546s is a transom mount transducer with depth and temp capability. With the transom mount transducer; the GPSMAP 546s will operate at 600 watts and can give you depth readings to 1,500 feet. Other features of the 546s include A-Scope for real time fish detection, 2X, 4X and bottom lock zoom, and Garmin’s new Auto Gain technology which enhances target visibility and simplifies the operation. If you are interested in a 1kW Setup please call us at 1-800-477-2611 for your options..
The GPSMAP 546s also features audible alarms for anchor drag, arrival to a waypoint or destination, 10 proximity waypoints, off-course, and clock as well as low battery voltage. The Garmin 546s also has loads of memory for waypoints and tracks; storing up to 3,000 waypoints with name and graphical symbol and 20,000 track log points with room to save 50 tracks. If you want to save routes, the 546s can store 100 of them all reversible with up to 300 per route.
When connected with a DSC capable VHF radio, the GPSMAP 546s can graphically display the positioning data received from the radio. Other features include built in tide and celestial data, back up of user data on a data card, and a housing that is waterproof to IPX-7 standards.The Garmin GPSMAP 546S replaces the Garmin GPSMAP 545S.
