Garmin e-trex Details
Unit Size: 4.4”H x 2.0”W x 1.2”D
Display Size: 1.1" x 2.1"
Weight: 5.3 oz. with batteries
Click here, to view the online Users Manual.
Garmin eTrex Special Features
- Up to 22 Hour Battery Life from 2 "AA" batteries.
- Stores 500 waypoints with name and symbol.
- Indefinite data storage - no memory battery required.
- 12 channel WAAS receiver with built-in patch antenna updates every second.
- Automatic Track log.
- NMEA, PC and differential interface capabilities.
Garmin eTrex Specifications
| # Of Way- points | # Of Routes | Max battery life /# of batteries | PC Interface Capability | External Antenna | Plotter Type |
| 500 | 20 | 22 Hrs./2 AA | Yes(req. cable) | None | Track Plotter |
| Speed Limitation 999 MPH. Supports Lat/Lon, UTM, Maidenhead, MGRS | |||||

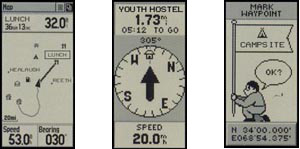

Garmin eTrex Screen Shots
Compact, Simple Operation, Outdoor Navigator with a New Receiver.

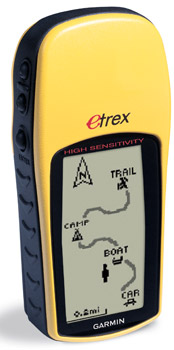

The Garmin eTrex H offers a new spin on a classic unit. Garmin took their basic e-Trex unit and revamped it with the latest GPS receiver technology. The H stands for high-sensitivity, built-in to the unit is a highly sensitive WAAS receiver that provides superb reception in heavy tree cover and canyons. Just like all of the other e-Trex series units, the e-Trex H is compact and light weight at mere 5.3 ounces with batteries, with the buttons positioned on the side for easy, one handed operation. The casing is rugged and waterproof to IPX-7 standards which means it can handle bad weather. Using just two AA batteries the e-Trex H will operate for approximately 15 hours. The Garmin e-Trex H has storage for up to 500 waypoints with name and symbol, 20 routes with up to 125 waypoints per route and a track log that holds 10,000 track log points with the ability to save 10 tracks. Other features include support for 15 languages and celestial data for the best fish and hunt times.
