Raymarine A60 Special Features
- Rugged submersible waterproof construction (IPX-7 standard).
- 5.7" Sunlight viewable color display.
- 12 parallel channel WAAS GPS receiver for increased accuracy.
- 320 x 240 pixel resolution (QVGA).
- Included Navionics Silver Marine Cartography.
Raymarine A60 Specifications
| # Of Waypoints | # Of Routes | Track log | Receiver Type | Display Size | Plotter Type |
| 1000 with name | 50 Rev. | 10,000 points 10 saved tracks |
RS-12 Included |
Color 5.7" | Chartplotter / (optional) Sounder |
| Speed Limitation 999 MPH. Supports - Lat/Lon, TD's. | |||||

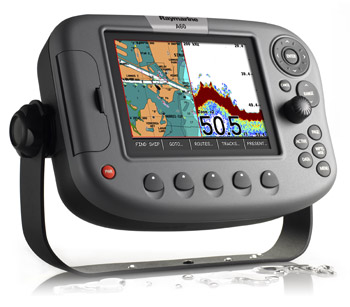

5.7" Color GPS/Chartplotter!
Raymarine has just added a new player their award winning A-Series plotter lineup. The New A60 is a sure choice for smaller boats with room for only one unit. With a sunlight viewable 5.7" display, RayStar 12 GPS Sensor and preloaded Navionics cartography the A60 will show you your location with impressive accuracy.
A60 Display Features:
- 5.7” Sunlight Viewable color display
- 320 x 240 pixel resolution (QVGA)
- Rugged submersible construction (IPX-7 standard)
- Standard yoke mounting bracket (optional console mount)
- RS12 12 Channel Satellite Differential GPS receiver (WAAS/EGNOSS)
- NMEA 0183 Input and Output
- Plug and Play DSM25 Digital Sounder Module
- A60 GPS-Chartplotter
The A60 comes complete with Navionics Silver cartography, covering all continental US coastal areas, Great Lakes and the Bahamas on a single pre-programmed compact flash card. These marine charts ensure seamless clutter free marine detail including tides, currents, shaded depth contours, navigation aids, spot soundings and more at your finger tips.
Chart Features:
- Ready-to-go Navionics chart coverage for the continental US coastal areas, Great Lakes and the Bahamas on a single CompactFlash card (US version only)
- Navionics XL3 Gold chart and Hot Maps compatible
- High speed chart redraw
- 1000 Waypoints and 50 routes with unlimited waypoint and route storage using optional CompactFlash memory card
- Chart Rotation Modes (Head up, Course up and North Up)
- Chart Screen offset for a maximum “look ahead” chart display
Expand your A60 to be a complete Chartplotter/Fishfinder by simply adding Raymarine's DSM-25 Digital Sounder Module. The DSM-25 is designed to be compact, waterproof and powerful sounder module. 500 Watts of RMS power and split-frequency 50/200khz give you the ultimate digital Fishfinder.
