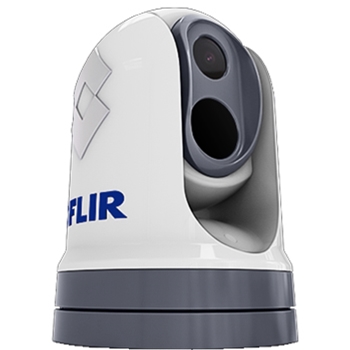

Premium Multispectral Marine Camera with Active Gyro-Stabilization
The M364C LR is built to withstand the toughest of conditions the seas can throw at you while still providing unparalleled performance that you’ve come to expect from FLIR. Gyro Stabilization virtually eliminates the effects of pitch, heave and yaw- providing accurate thermal images in critical moments. Featuring a high definition low light camera, the M364C-LR provides an elite level of awareness on the water.
FLIR’s M364C LR Stabilized Thermal Camera offers 360-degree continuous pan and 90-degree tilt. This advanced thermal camera provides a solution to situational awareness even in the darkest nights with 640 x 512 thermal resolution and 4x Continuous E-Zoom. FLIR’s Thermal Imaging Core in the M364CLR provides thermal refresh rates up to 30Hz and advanced image processing.
With the narrow FOV of 18 degrees X 13.5 degrees, the M364CLR offers extended range performance for confirming vessel identification. This is one of the features that makes the M364C LR the perfect Thermal imaging camera for Law enforcement professionals and commercial vessels.
FLIR’s proprietary Digital Detail Enhancement provides super clear images by overcoming the problem of finding low contrast targets in high dynamic range scenes. The built in Attitude Heading Reference
provides horizontal stabilization to the camera keeping the camera on scene as you maneuver rough and unpredictable seas.
Color Thermal Vision blends visible camera details with a thermal image that allows captains to confidently identify Nav aids, other vessels, and obstructions giving full navigational awareness. Intelligent Thermal Analytics provides audible and visual alerts when "non-water" objects such as a boat, buoy, or person is identified with your scene. You must have an Axiom display to have this feature.
With the Standard BNC Analog video connector, installation is very simple. The optional FLIR Joystick Control Unit allows for control of the pan and tilt features from a non-Raymarine chartplotter. Want full control of your FLIR from your chartplotter? Select from Raymarine’s Axiom series and enjoy full multifunction display integration.
*Please note Garmin POE Coupler and Garmin Marine network cables are required when connecting to Compatible Garmin GPSMAP units. If you are installing both the Camera and the JCU you will require 2 couplers and 2 network cables (one needed for each component.)
FLIR M364C LR Stabilized Thermal Camera with Color Box Contents
Each FLIR M364C LR Stabilized Thermal Camera with Color Comes with:
- M364C LR Thermal and Low Light Camera
- Camera Base-Seal
- Camera Gasket
- Raynet-to-RJ45 Adaptor Cable (4.72”)
- Right Angled RayNet-to-RayNet Cable (9.8’)
- Right-Angled BNC-to-BNC Cable (9.8’)
- Right-Angled 3 Pin Power Cable (9.8’)
- Mounting Riser
- 3 x Camera Fixings (nuts, done nuts, spring and flat washers and threaded studs)
- 2 x Self-Adhesive Decals (for ball-down mounting only)
- Documentation Pack
- 2 Year Warranty
FLIR M364C LR Stabilized Thermal Camera with Color Key Features
- Thermal and Visible Imaging Featuring FLIR Color Thermal Vision and MSX
- Low Light HD Visible Imaging Sensor
- Two-Axis Mechanical Stabilization
- 18-degree x 13.5-degree FOV
- 12x EZoom-Color, 4x Continuous EZoom
- Size: 8.7"W x 12.25"H, Dimensions on Mounting Riser 8.7”W x 14.4”
FLIR M364 C LR DatasheetClick Here
