Garmin APK 10 Autopilot Keypad

Gain control of your autopilot with the APK Keypad! This intuitive keypad features a simple knob and button control making it easy to adjust your heading. Engage or put your autopilot into standby with the simple push of a button. Add additional autopilot functions based on your preferences. Connect the APK 10 via simple NMEA 2000.
Available in Horizontal or Vertical Orientation. Choose Orientation Below.

SKUGA03197
MAN#010-03197-00
ID#: 8384

(Rating 87)

Our Price:

$399.99

Orientation

Availability:

Temporarily Out of Stock

Shipping:

Free Ground Shipping!

Condition:

Brand New

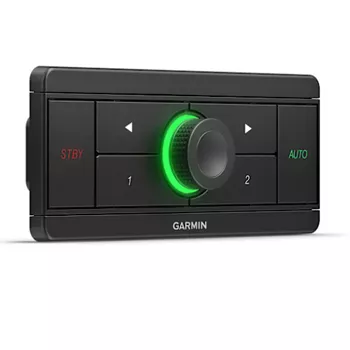

Low-Profile Autopilot Keypad!

The Garmin APK10 Autopilot keypad is a low profile, intuitive control panel with a small footprint and easy installation that allow you fully customizable control options for your Reactor 40 Autopilot. The APK 10 connects via NMEA 2000 to your existing backbone for control of your autopilot and is actually powered from the backbone so no need to run a separate power cable.

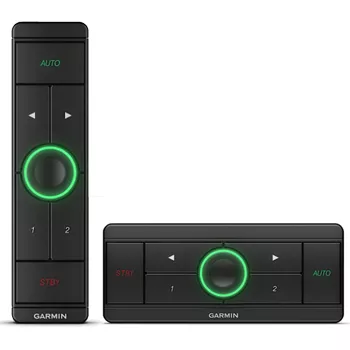

The design and height of the APK10 keypad comes from the Garmin GHC50 instrument and is available in horizontal and vertical mounting orientations.

The LED-backlit rotary knob provides prices heading control and a quick colored visual reference of the autopilot status.

The APK10 has dedicated engage and standby buttons making is simple to start and stop your Garmin Reactor 40 Autopilot. The multipurpose buttons add more control functions based on your vessel type and from your setup preferences during your initial autopilot setup.

Garmin APK 10 Autopilot Keypad Box Contents

Each Garmin APK 10 Autopilot Keypad Comes with:

APK 10 Autopilot Keypad
Backbone/Drop Cable (2m)
NMEA 2000 T-Connector
Mounting Hardware (Flush and Surface)
Documentation
1- Year Warranty

Garmin APK 10 Autopilot Keypad Key Features

LED Encircled Rotary Knob Provides Heading Control.
Dedicated Engage and Standby Buttons are Easy to Use.
Powered by the NMEA 2000 Network.
Simple NMEA 2000 Installation.
Low Profile Design Matches GHC 50 Displays.
Horizontal Option- Flush mount: 5.5” x 2.3” x 0.28”, Surface mount: 5.5” x 2.3” x 0.65”
Vertical Option- Flush mount: 1.6” x 6.2” x 0.28”, Surface mount: 1.6” x 6.2” x 0.65”
