Garmin Reactor 40 Hydraulic Corepack with SmartPump v2 and GHC 50

Free Ground Shipping!

Garmin Reactor 40 Hydraulic Corepack with SmartPump v2 and GHC 50

Garmin’s Reactor 40 with GHC 50 and SmartPump V2 takes the guess work out of autopilots! With a SmartPump V2 that works with most boats and applications, the V2 pump reduces its size overall and provides for optimum control and performance!
  • SKUGA0279401
  • MAN#010-02794-01
  • ID#: 7091
(Rating 92)
Our Price:
$4,399.99
Availability:
In Stock
Shipping:
Free Ground Shipping!
Condition:
Brand New

Complete Autopilot Package with SmartPump V2

The Garmin Reactor 40 with SmartPump V2 offers advanced autopilot technology to boating enthusiasts that was once only available for commercial boats. The Reactor 40 autopilot series is simply the most responsive autopilot system that Garmin has ever built.

The included Garmin GHC 50 Marine Autopilot Instrument allows you to navigate with ease! The GHC 50 has an intuitive design and sunlight readable 5" touchscreen with edge-to-edge glass display, matching GPSMAP x3 and GPSMAP 8600 series displays. The high-resolution (800 x 480) WVGA display provides a top notch viewing experience in any marine conditions.

The Reactor 40 with SmartPump V2 prevents the need for estimating the correct pump size for your particular vessel. With previous models, to select the correct pump size for your vessel the dealer would need to know the total cubic inches of the steering cylinder on the boat.

The advanced solid state 9 Axis AHRS, enables you to mount the new system virtually anywhere in any orientation. The new system minimizes heading error, rudder movement and course deviation while maintaining the smooth ride that Garmin Reactor series pilots has always been known for. The Reactor Autopilot itself requires minimal commissioning and calibration after installation reducing the time from over 20 minute setup to literally less than 5 minutes in most cases.

You have full control of Garmin’s Reactor 40 when paired with one of Garmin’s compatible MFD’s. When paired with Garmin’s G3 Charts, you can enjoy features like Auto-Guidance which automatically steers GPS courses. The GHP Reactor 40 Autopilot with SmartPump utilizes a feature called Intelligent Rudder Rate Technology (IRRT), which actually slows the rudder rate when the vessel is at high speeds and speeds up rudder rate when the vessel is at lower speeds to provide optimal performance and safety in all conditions. Plus, the brushless motor prevents the risk of a rudder “hard-over” due to hardware or software issues.

The Smartpump V2 is built from corrosion resistant components including anodized aluminum and nickel plated steel parts. The name, Reactor 40, is very appropriate since it quickly reacts to sea conditions and boat speeds. Garmin’s Shadow Drive technology is part of the GHP Reactor40 V2 Autopilot with SmartPump V2, so you can rest assured you have complete control while the autopilot is engaged.

The GHP Reactor Autopilot with SmartPump v2 is built by boaters for boaters with the idea of easy-to-use as a main goal.

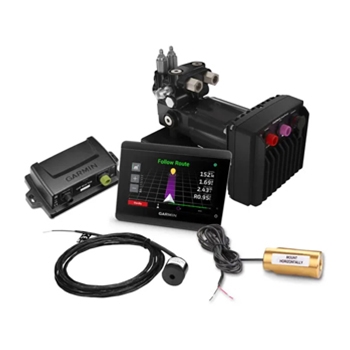

Garmin Reactor 40 Hydraulic Corepack with SmartPump v2 and GHC 50 Box Contents
Each Garmin Reactor 40 Hydraulic Corepack with SmartPump v2 and GHC 50 Comes with:
  • GHC 50
  • SmartPump v2
  • Reactor 40 CCU (Course Computer Unit
  • ECU (Electronic Control Unit) power cable
  • Interconnect cable
  • Shadow Drive
  • Buzzer
  • NMEA 2000® drop cables (2 meters)
  • NMEA 2000 power cable
  • NMEA 2000 T-connectors
  • Male and female terminators
  • Documentation
  • Two Year Warranty
  • SmartPump V2 Size: 7.8"W x 7.5"H x 9.6"D
  • Garmin Reactor 40 Manual Click Here
Garmin Reactor 40 Hydraulic Corepack with SmartPump v2 and GHC 50 Key Features
  • Designed to work with Most Hydraulically Steered Boasts
  • Includes SmartPump V2 – takes guesswork out of selecting correct pump
  • Patented Shadow Drive technology keeps you in control even when your autopilot is engaged
  • Solid State 9-Axis AHRS mounts in any orientation
  • Complete Package including SmartPump V2 and GHC50
Garmin GHC 50 Owners Manual Click Here
Garmin GHC 50 Installation Guide Click Here
