Advanced Hideaway Marine Head Unit

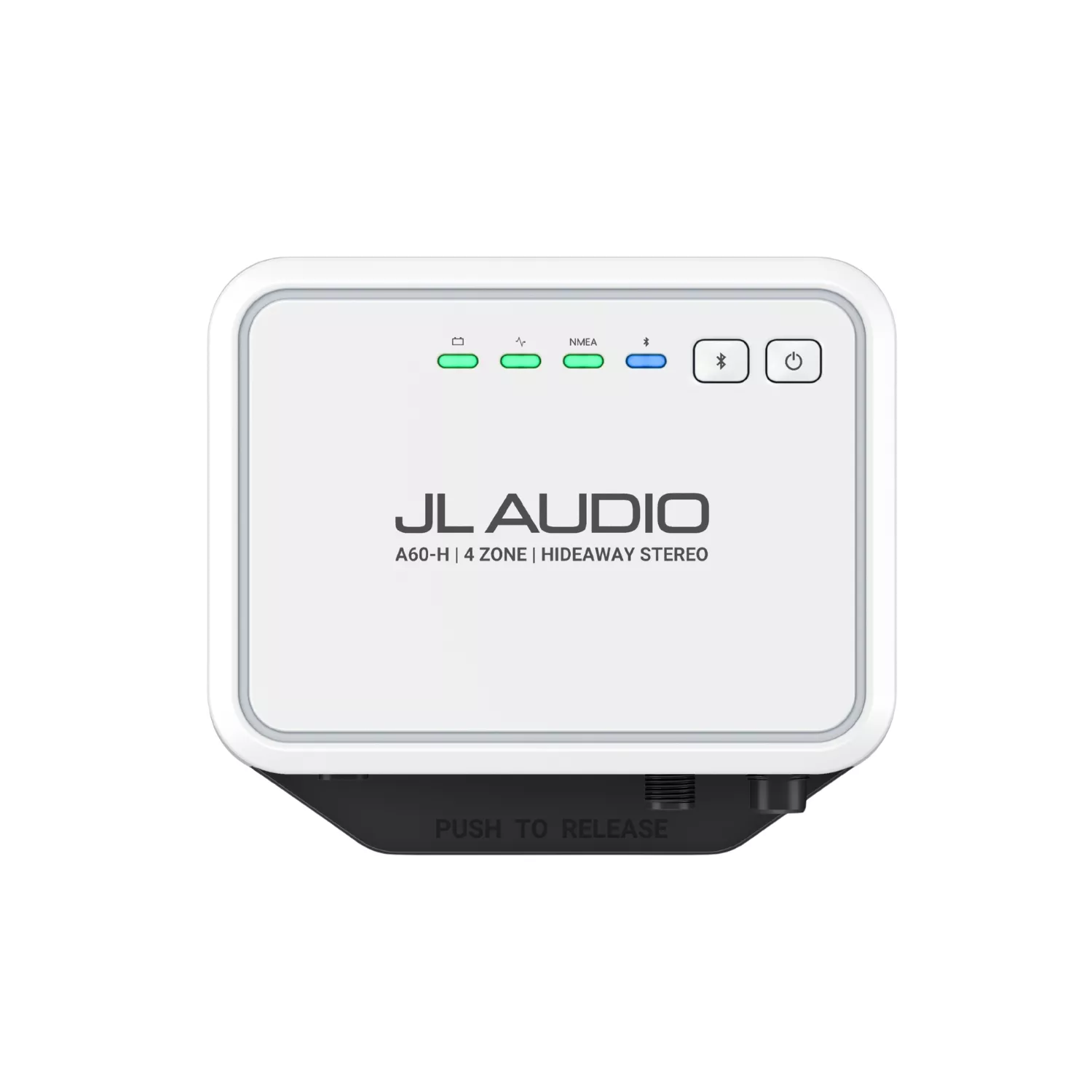

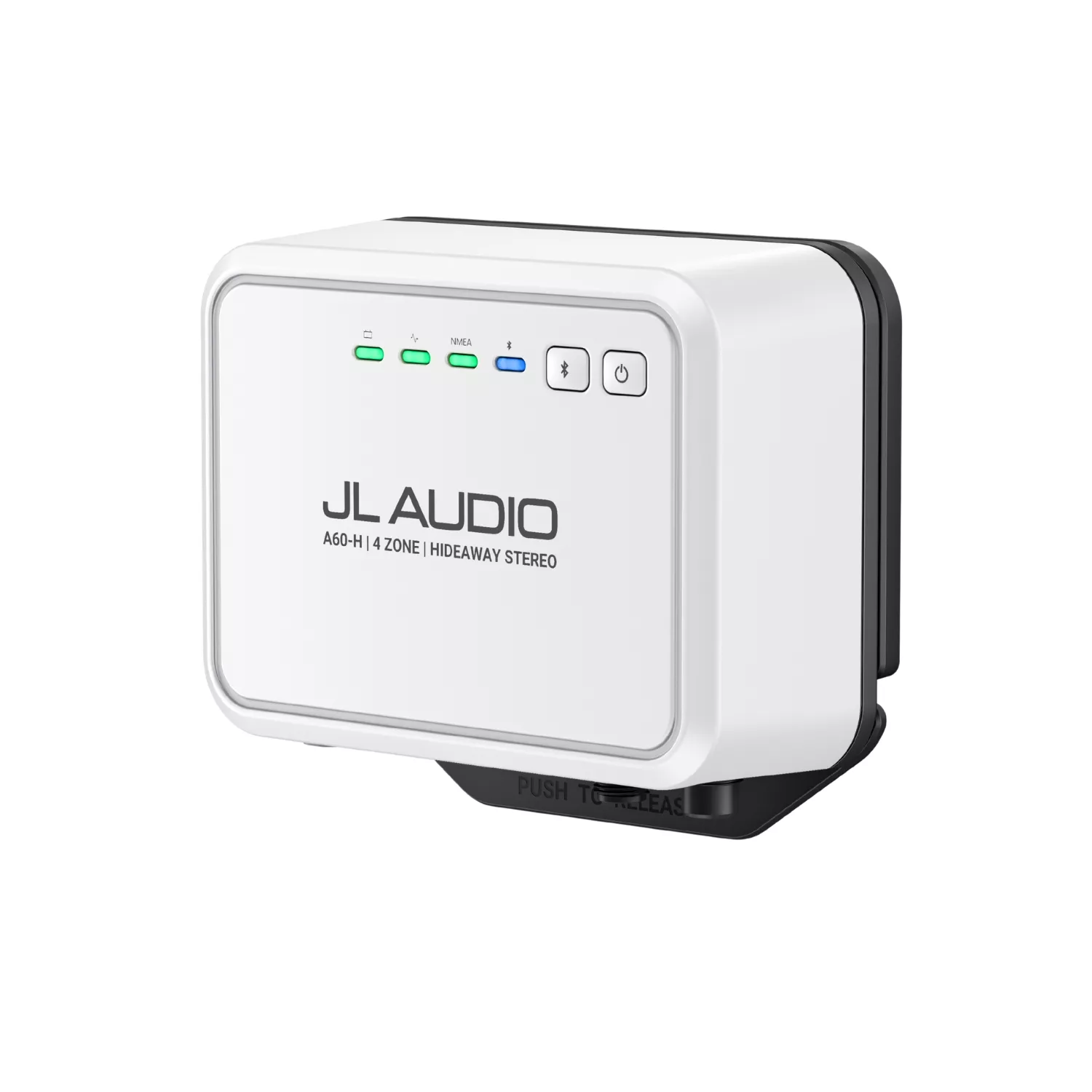

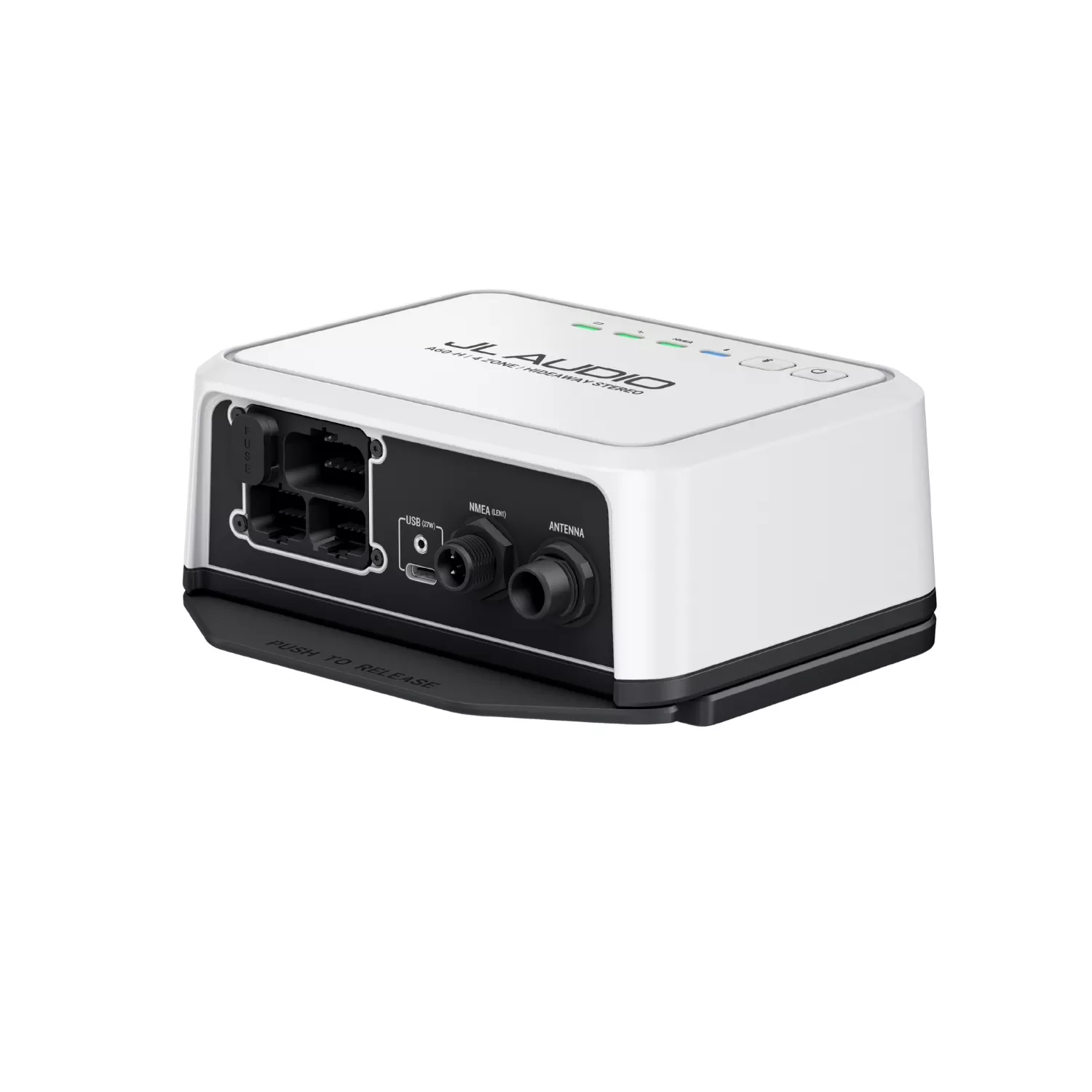

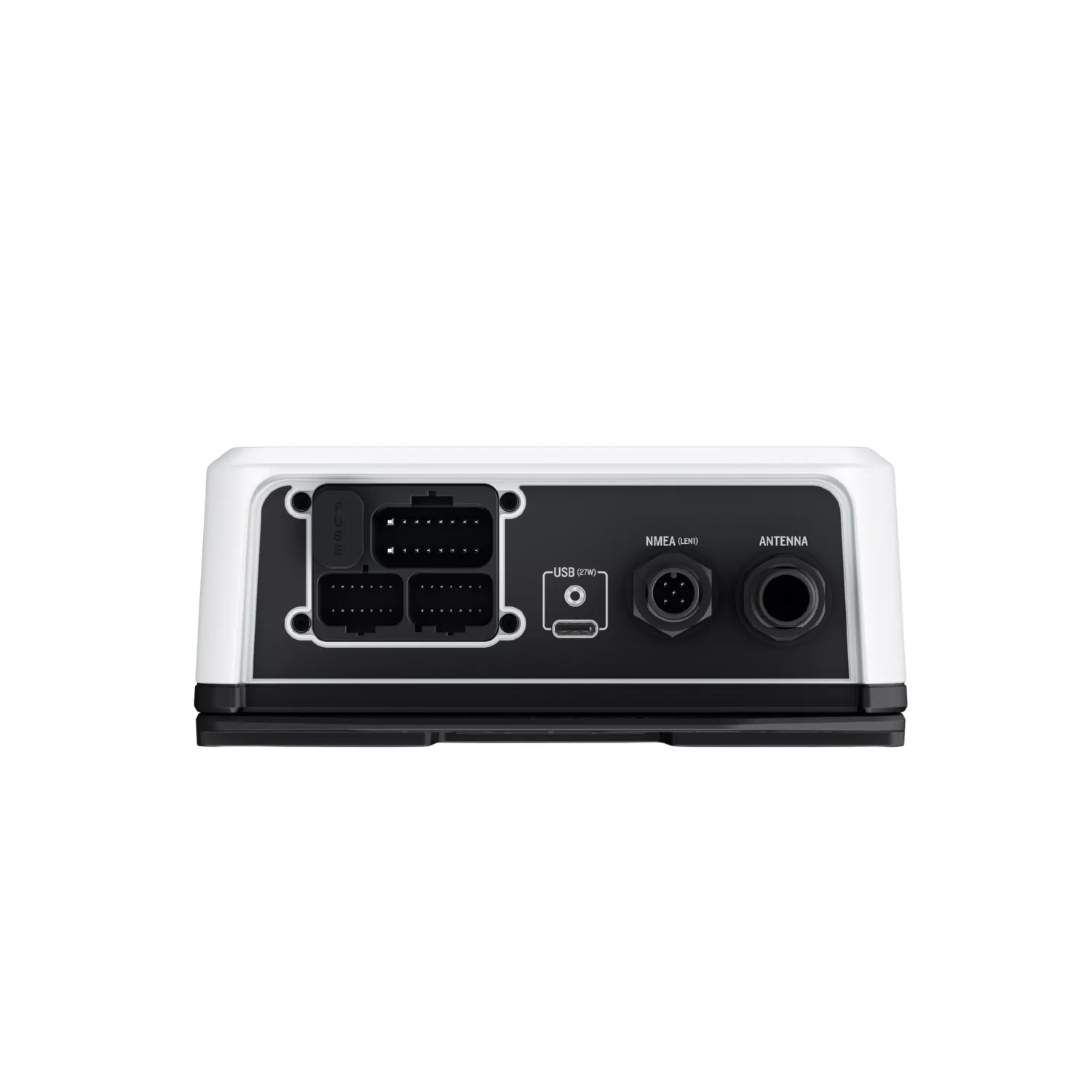

The JL Audio A60-H, is a compact marine audio system designed to deliver high-quality sound while maximizing available space on board.
Its hideaway configuration allows the unit to be installed in a variety of locations, including behind a dashboard, within a storage compartment, or inside a steering console. This design provides a clean, discreet installation without sacrificing functionality.
The A60-H features built-in digital signal processing (DSP), Bluetooth connectivity, and an integrated DAB+/FM tuner. Audio settings can be customized through the Garmin Audio app, providing convenient control and sound optimization.
The system provides four-zone audio control and incorporates a Class-D amplifier capable of producing 17 watts RMS per channel at 4 ohms, with up to 22 watts of dynamic power per channel.
For seamless integration with compatible marine electronics, the A60-H is NMEA 2000 compatible. It can also be controlled through compatible Garmin marine chartplotters, smart devices, Garmin watches, and optional wired remote controls.
Built for marine applications, the A60-H offers IPX6 and IPX7 water resistance when properly installed. It operates on a 10.8–16 VDC power supply, making it suitable for standard marine electrical systems.
JL Audio A60-H Hideaway Marine Head Unit Box Contents
Each JL Audio A60-H Hideaway Marine Head Unit Comes with:
- JL Audio A60-H
- Power/speaker harness
- Zone 1 and zone 2 harness
- Zone 3 and zone 4 harness
- Mounting bracket with hardware
- Documentation
- Three Year Warranty
JL Audio A60-H Hideaway Marine Head Unit Key Features
- Compact design that can be hidden away to save space at the helm
- Multizone Technology in up to 4 zones
- NMEA 2000 Combatable
- Built-in Digital Audio Broadcasting Tuner
- Head unit is rated IPX6 and IPX7 for water protection
- Size: 5.86"W x 5.11"H x 2.50“D
