JL Audio NMEA 2000 Network MFD Data Interface

Free Ground Shipping!

JL Audio NMEA 2000 Network MFD Data Interface

JL Audio NMEA 2000 Network MFD Data Interface

The JL Audio NMEA 2000 Network MFD Interface is a NMEA 2000 certified interface designed to generate MediaMaster themed navigation and controls onto your compatible multifunction display. Compatible with select MediaMaster source units, this device allows you to both pilot your boat and control your MediaMaster with ease.
  • SKUJL03135
  • MAN#010-03135-00
  • ID#: 8335
(Rating 92)
Our Price:
$499.99
Availability:
Usually Ships in 3-5 Days
Shipping:
Free Ground Shipping!
Condition:
Brand New

Convenient MFD Data Interface for MediaMaster Source Units!

The MMA-1-HTML by JL Audio is an MFD Interface for MediaMaster source units with NMEA 2000. This easy to use device generates MediaMaster themed user interface navigation and controls directly to your compatible multifunction display through NMEA 2000 (NMEA 2000 network required, NMEA 2000 components sold separately). The MMA-1-HTML is compatible with Simrad, B&G, Lowrance and Garmin displays. The JL Audio data interface automatically recognizes the MediaMaster source unit and then projects its familiar screen information and navigation to your display making it easier than ever to control your audio.

This device is compatible with MM105, MM105-HR, MM55 and MM55-HR.

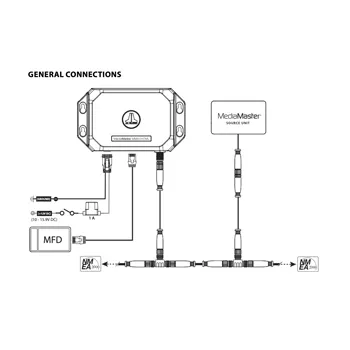

Note: Functionality of the MMA-1-HTML is derived from the host source unit and connected MFD. The MMA-1-HTML requires connection to a NMEA 2000® network or use of a MMC-PN2K powered network cable (sold separately) to simulate an isolated, stand-alone NMEA 2000® network.

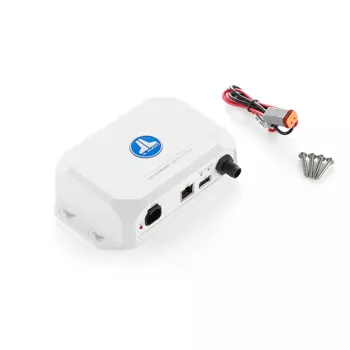

JL Audio NMEA 2000 Network MFD Data Interface Box Contents

Each JL Audio NMEA 2000 Network MFD Data Interface Comes with:
  • JL Audio NMEA 2000 Network MFD Data Interface (MMA-1-HTML)
  • Mounting Screws
  • *NMEA 2000 Components NOT Included.
  • 2-Year Warranty

JL Audio NMEA 2000 Network MFD Data Interface Key Features

  • Compatible with MM105, MM105-HR, MM55 and MM55-HR.
  • Automatically Recognizes the Host MediaMaster Source Unit.
  • Projects Familiar Screen Info and Navigation Controls from MediaMaster Source onto MFD.
  • JL Audio Part Number MM-1-HTML/ 99956
  • NMEA 2000 Certified and Compatible with Simrad, B&G, Lowrance and Garmin.
  • Size: 6.77"W x 3.98"H x 1.73“D

Owners Manual
