5-Channel, Class D Marine Amplifier with NexD Technology!
The XDM1000/5 is a 5-Channel Class D Marine System amplifier. The XDM1000/5 has 1000W of power and can drive two pairs of quality component speaker systems with plenty of power while also generating a stout 600w of power for a subwoofer system. The high-speed NexD switching amplifier design has a small chassis but packs a lot of power.
The amplifier is built with marine grade materials . The making it suitable for boat and car installs. Each unit comes with a 2-year warranty from date of purchase. The dual-mode input filter provides noise-free performance. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM1000/5 includes a 12 dB / octave high-pass filter. The for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz.

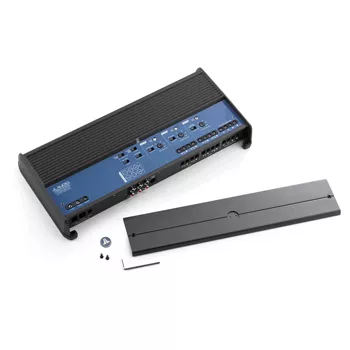

Add a HD-RLC or MHD-RLC remote. The level controller, sold separately and gain the ability to adjust the level of all amplified channels or just the subwoofer channel directly from your seat. The amplifier will add a custom look to any vessel with the sleek black powder-coat. The XDM1000/5 controls are protected beneath a gasket and has a removable top cover for easy access no matter the install location. The amplifier provides high quality audio and reliability you expect from JL.
- JL Audio Part Number 98678, Garmin Part Number 010-03113-00
JL Audio XDM1000/5 Marine System Amplifier Box Contents
- (1) JL Audio XDM1000/5 Marine System Amplifier
- 2-Year Warranty
JL Audio XDM1000/5 Marine System Amplifier Key Features
- NexD Switching Technology for Exceptional Audio Quality and Efficiency.
- Ideal for an Audiophile-Grade, Subwooder + Four Satellite System.
- Built with Marine Grade Materials with Exclusive Dual-Mode Input Fiulter for Noise-Free Performance.
- 100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4V
- Sleek, Black Powder-Coating with All Controls Protected Beneath a Gasket.
- JL Audio Part Number 98678
- Size: 14.73"W x 2.05"H x 7.09“D
