Doppler Radar with Target Tracking

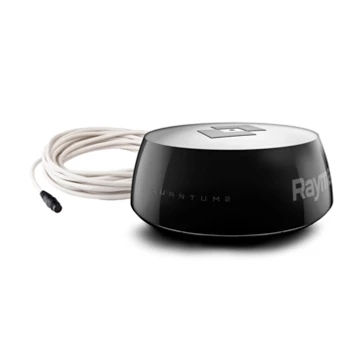

The Black Raymarine Quantum 2 Q24D Doppler Radar offers a safer navigation experience with a simplified installation weighing in a half the weight of competing radar domes.
The Quantum 2’s 24NM range is great to pick up and track those far and close range targets. The low power consumption and superior target separation of close targets make this radar ideal for smaller powerboats and sailboats. The Included 10m data cable is extendable by adding a Raymarine Raynet to Raynet coupler and an additional Raynet to Raynet cable.
The Doppler technology that the Quantum 2 Q24D uses is tuned specifically to detect the frequency shift of a radar echo from moving vs
stationary targets. The Quantum 2 actually color codes moving targets to determine which objects are moving towards or away from your vessel. You’re even able to setup boundary zones whereas if one of the targets enters those zones you will receive an alarm notifying you. This is a great feature if you’re planning on making overnight trips.
The Quantum 2 features Raymarine’s “True Trails” target history display which allows you to see a historical “wake” behind every moving object. This makes it super simple to determine the direct that those targets are traveling which in return allows you to make smart decisions maneuvering your own boat.
The Raymarine Quantum 2 Q24D Doppler 18” Radar- Black would make a great addition to your compatible Raymarine MFD.
Raymarine Black Quantum 2 Q24D Box Contents
Each Raymarine Black Quantum 2 Q24D Comes with:
- Quantum 2 Radome with Black Radome Enclosure
- 10M Power and Data Cable
- M8 mounting bolts with spring washers and flat washers
- Documentation pack (including mounting template)
- Two-Year (Upgradable to 3 years when Registered) Warranty
Raymarine Black Quantum 2 Key Features
- Compatible with Axiom and Axiom Pro MFD's
- 4.9° Horizontal Beamwidth
- Low Power Consumption
- 24nm range
- Situational Awareness with Doppler Moving Targets
- Safe Emissions – Mount anywhere onboard
Raymarine Quantum 2 Manual - Click Here
