Simple, Effective Way to Convert Vessel and Engine Information to NMEA 2000!

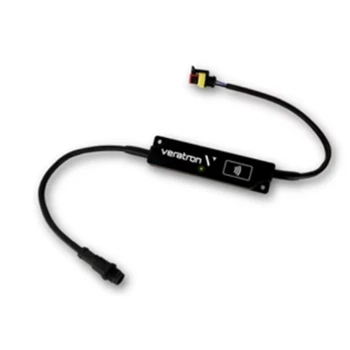

The Veratron Linkup Gateway Resistive is an easily installed module that replaces your original wiring to deliver power to the Linkup device and sensor via the NMEA 2000 backbone along with being compliant with the NMEA 2000 certification. While being approved for engine compartment installation and capable of operating in temperatures from -40°C to 115°C, the Linkup device will allow you to monitor your rudder, pressure, trim, fresh and waste water levels, fuel level, oil temperature, and coolant temperature via the LinkUp Configuator app on your Android or IOS device.

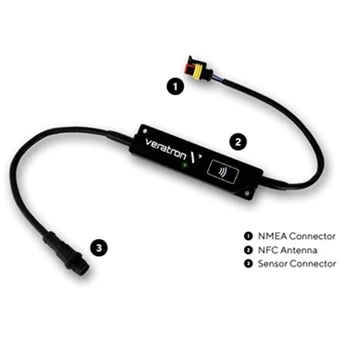

At a size of 125mm x 32mm plus cables, this device consists of a 30cm wire pigtail with a 5-pin standard M12 connector, the LinkUp device with notification LED light, and a sensor side cable that is approximately 50cm long when unrolled. The sensor is configured by type, instance, and threshold warning via your smartphone and all data received is available for instant download.
Veratron LinkUp ANALOG Resistive to NMEA 2000 Box Contents
Each Veratron LinkUp ANALOG Resistive to NMEA 2000 Comes with:
- LinkUp Gateway- Resistive
- Safety Manual
- Veratron Card
- 2-Year Warranty
Veratron LinkUp ANALOG Resistive to NMEA 2000 Key Features
- Contactless Configuration with Your Compatible Smartphone.
- Powered by NMEA 2000- No Additional Power Supply.
- Approved for Engine Compartment Installation According to ISO 8846-1990.
- Secure- Configuration Requires Proximity to Device.
- Customizable Sensor Curves.
- Size: 125mm x 32mm Plus Cables
Veratron LinkUp Manual Click Here
