Display a Wealth of Boat System Data on Elegant Black-Glass Display!

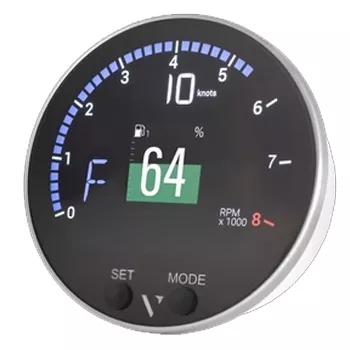

The VMH-35 Outboard Engine Kit includes the sleek multifunction marine display for monitoring single inboard or outboard engine applications as well as an outboard engine kit. The stylish black-glass design with brushed stainless-steel ring will fit in nicely with your electronics suite. A bright, sunlight readable color 1.44” TFT display features a sleek stainless-steel bezel. The built in GNSS GPS receiver boasts a 2.5m accuracy and provides GPS speed, compass, and position data. IPX7 protection rating from the front and back to ensure the best performance in harsh weather conditions. The VMH 35 has an embedded GNSS receiver to support and show navigation information, while monitoring analogue input directly, such as fuel, trim, and tachometer. Analog inputs for older engines or via built in NMEA 2000 Gateway eliminating need for a convertor.

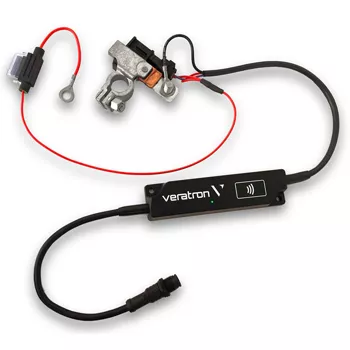

The included Outboard Kit features the Intelligent Battery Sensor allowing for critical 12V battery monitoring capabilities.
Even in smaller vessels or cockpits with limited space the VMH 35 displays key information such as Rudder Angle, Trim Coolant, Engine Speed (RPM), Seawater Temperature to name a few. A special input is dedicated to the Veratron IBS (Intelligent Battery Sensor- It can provide critical 12V battery monitoring information). All this data is distributed to NMEA 2000® thanks to its embedded certified gateway.

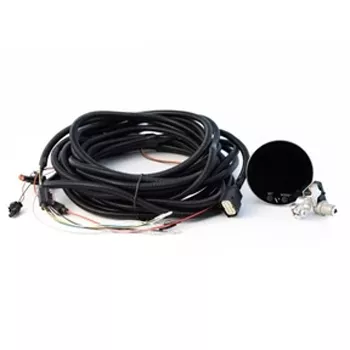

Veratron VMH 35 Outboard Engine Kit Box Contents
Each Veratron VMH 35 Outboard Engine Kit Comes with:
- VMH 35 Display
- Wire Harness
- Intelligent Battery Sensor
- Pole Adapter
- 2-Year Warranty
Veratron VMH 35 Outboard Engine Kit Key Features
- Black-Glass Design with Brushed Stainless-Steel Ring.
- Sunlight Readable, Color Hybrid Display.
- Intelligent Battery Sensor Gateway.
- High Performance GNSS Receiver.
- NMEA 2000 Certified.
- Gauge Dimensions: 100 mm (outer) 85 mm (mounting hole)
Veratron VMH-35 Manual Click Here
Similar Products and Value Bundles
Veratron VMH-35 D NMEA 2000 Color Display with GPS
The VMH-35 D is specifically designed to help monitor diesel engines. This compact display is capable of showing a wide range of data from your engine, battery tank and GPS. With an embedded high-performance GPS and Analog/CAN to NMEA 2000 gateway- it is an ideal addition to your marine suite or as a standalone solution!
- VR171101
- MAN#B00171101
- ID#: 7979
(Rating 89)
MAP Price
Availability:
In Stock
Shipping:
Free Ground Shipping!
Condition:
Brand New
Veratron VMH-35 NMEA 2000 Color Display with GPS
The VMH-35 features a black-glass design with stylish brushed stainless-steel ring. This new generation of sunlight readable color hybrid displays has an integrated high-performance GNSS receiver and is NMEA 2000 certified. An embedded analog to NMEA 2000 gateway eliminates the need for an additional external converter making the VMH-35 ideal for refitting with older engines!
- VR085501
- MAN#B00085501
- ID#: 7978
(Rating 89)
MAP Price
Availability:
In Stock
Shipping:
Free Ground Shipping!
Condition:
Brand New
