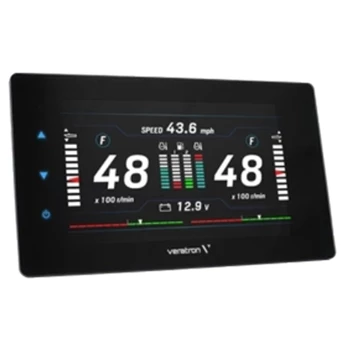

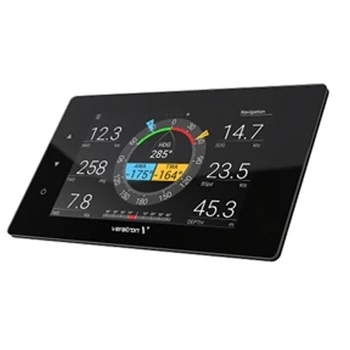

Veratron VMH-70 NMEA 2000 Color Display

Veratron VMH-70 NMEA 2000 Color Display

The VMH-70 multifunctional display monitors your boat engines and navigation data! Up to 4 engines can be monitored with a single display. The integrated NMEA 2000 gateway allows you to receive data via analog or J1939-this data is then converted and distributed via NMEA 2000.
  • SKUVR129201
  • MAN#B00129201
  • ID#: 7986
(Rating 93)
Our Price:
1019.69
MAP Price
Availability:
Usually Ships in 3-5 Days
Shipping:
Free Ground Shipping!
Condition:
Brand New

Premium 7-Inch Touchscreen Instrument Display!

The VMH-70 7" display is designed to manage a large amount of vessel data. Easily configure information from up to 4 engines when connected via NMEA 2000 or two engines via J1939. Group similar items including single or dual engines, battery performance, fuel, water, waste, tank level, rudder and trim, onboards systems, nav data and weather. Eye strain is a thing of the past with the integrated light sensor that adjusts the display for easy viewability.

The embedded NMEA 2000 gateway brings all of the readings to your external multifunction display. Expand your system by adding up to 16 VMH-14 gauges (Sold separately).


  • 6 x Resistive Sensor Inputs
  • 2 x Frequency Inputs for RPM Readings
  • 3 x 0-5 V Sensor Inputs
  • 2 x 4-20 mA Sensor Inputs
  • 2 x SAE J1939 CAN Ports
  • 2 x EasyLink Channels
  • 2 x Composite Video Inputs

    • Veratron VMH-70 NMEA 2000 Color Display Box Contents

    Each Veratron VMH-70 NMEA 2000 Color Display Comes with:
    • VMH-70
    • Wiring Harness
    • 2-Year Warranty

    Veratron VMH-70 NMEA 2000 Color Display Key Features

    • Slim Panel Installation Profile.
    • Reliably Operating in High-Temperature Environments.
    • NMEA 2000 Certified.
    • Fully Configurable Analog Inputs for Direct Sensor Connections with NMEA 2K Gateway.
    • Dual J1939 CAN Ports.
    • Dimensions: 220 x 128 mm (Outer) 118 x 206 mm (Mounting Hole)
    Veratron VMH-70 NMEA 2000 Color Display Manual Click Here
