10.4” LCD Radar Display

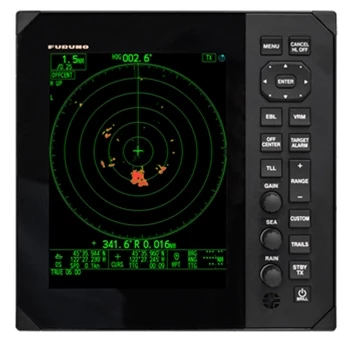

The Furuno FR10 Radar Display is a superior radar solution boasting a 10.4” XGA Radar Display for recreational and commercial boaters alike.

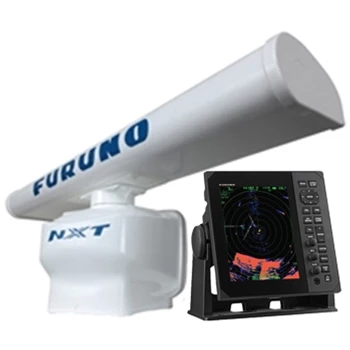

The Radar Bundle includes the Furuno DRS12A-NXT (Next Generation) Radar with 4' Open Array which combines a 100 watt Solid-State Radar with pulse compression, Target Analyzer and Fast Target Tracking utilizing Doppler technology and has a Max Range of 96nm and other new features.
Fast Target Tracking and Target Analyzers work together to show an image that indicates the speed and heading of a target while automatically being tracked from the beginning for better target trajectory and display of the velocity vector. Target Analyzing identifies dangerous targets that are likely to collide with your vessel using different colors according to the degree of danger to your vessel. Understanding threats at a glance gives an added peace of mind.
An included HDMI output allows boaters to connect the FR10 to a larger LCD or TV monitor for dual viewing expansion perfect for any vessel. Identify surrounding risks and navigate safely with the new Risk Visualizer that provides boaters with information on potential collision areas and movement of all surrounding vessels, keeping you and your crew safe. Receive an easy and quick overview of what’s going on around your ship with color-coded alerts according to the threat of the collision allowing you to acknowledge the danger level and plan your vessels next move. Safety at sea is key and Furuno kept that in mind with this new feature!
Utilize the Echo Average feature that brings attention to irregular echoes such as reflections from the seas surface and precipitation and stabilizes echoes obtained from fishing gear and other nearby vessels. The Echo Average, even in poor weather conditions like high seas, dense fog, or precipitation, will also provide you with clearer images. Compatible with a wide variety of radar domes from Furuno’s powerful antenna line-up (dome or open array sold separately), the Furuno FR10 can be configured in a variety of ways ensuring you have the best radar to meet all of your needs!
The DRS12ANXT uses your boat's 24VDC power. If your boat has 12v DC, then you will need to add a 12 to 24v converter (Sold Separately). Radar overlay on charts NOT available on FR10 model.
Furuno FR10 Display and DRS12ANXT4 Radar Bundle Box Contents
- Color LCD Display
- Hard Cover
- Cable Assembly
- Bracket Assembly with Knob
- Operator’s Manual
- Furuno DRS12A-NXT Gearbox
- XN12A 4' Open Array
- Signal/Power Cable Assy 15M
- Documentation
- Two Year Warranty
- The DRS12ANXT uses your boat's 24VDC power. If your boat has 12v DC, then you will need to add a 12 to 24v converter, Sold Separately.
Furuno FR10 Display and DRS12ANXT4 Radar Bundle Key Features
- Fast Target Tracking
- Target Analyzer
- Echo Average
- Display Modes: Head-Up, Course-Up, North-Up, True Motion, Stern-Up
- Risk Visualizer Feature
- Size: 12.4"W x 13.1"H x 6“D
Product Accessories for Furuno FR10 Display and DRS12ANXT4 Radar Bundle
Furuno DRS AX and NXT Signal/Power Cable, 10M
The Furuno DRS AX and NXT Signal/Power Cable is compatible with Furuno DRS AX and DRS NXT Radars. The Furuno Signal/Power Cable is a required component for your Furuno radar.
Size: 10M
Furuno DRS AX and NXT Signal/Power Cable, 15M
The Furuno DRS AX and NXT Signal/Power Cable is compatible with Furuno DRS AX and DRS NXT Radars. The Furuno Signal/Power Cable is a required component for your Furuno radar.
Size: 15M
Furuno DRS AX and NXT Signal/Power Cable, 20M
The Furuno DRS AX and NXT Signal/Power Cable is compatible with Furuno DRS AX and DRS NXT Radars. The Furuno Signal/Power Cable is a required component for your Furuno radar.
Size: 20M
Furuno DRS AX and NXT Signal/Power Cable, 30M
The Furuno DRS AX and NXT Signal/Power Cable is compatible with Furuno DRS AX and DRS NXT Radars. The Furuno Signal/Power Cable is a required component for your Furuno radar.
Size: 30M
