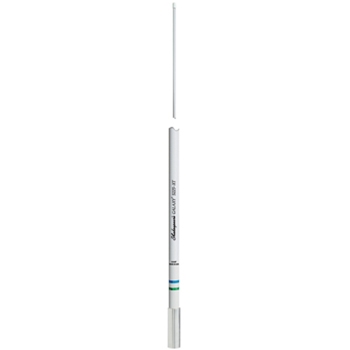

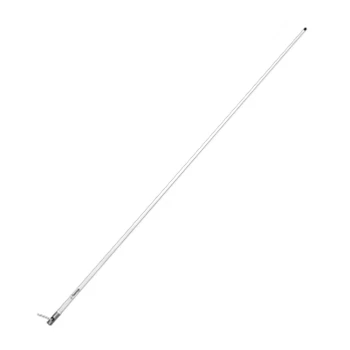

Shakespeares 5225-XT is Extra Tough. For the toughest of the tough jobs, Shakespeare offers the Galaxy 5225-XT. Maximizing range and quality this antenna is designed to withstand the wind forces and high speeds when used onhard tops, T-tops, and radar arches.

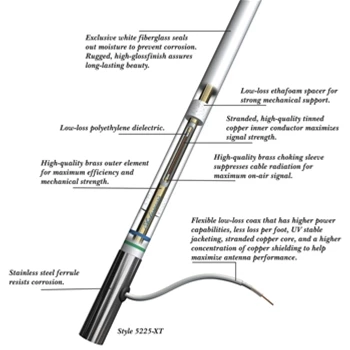

- Brass and copper elements for exceptional range and efficiency

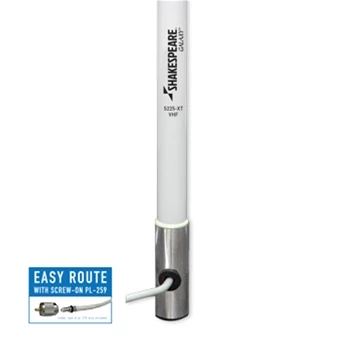

- Stainless steel ferrule with standard 1"-14 thread
- Includes 20' RG-8/X cable and a PL-259 connector. PL-259 center pin is already installed on the end of the 20-foot cable. The outer connector is silver and come with the antenna to be installed by customer.
- Mount Not Included- Suggested Mount: Shakespeare Style 4187 Ratchet Mount (sold separately)
- One section
- Shakespeare Limited Warranty: 5-Years
Specifications:
- Max. Power Input: 100 watts
- SWR: nominally 1.5:1 at 156.8 MHz
- Bandwidth: 3 MHz within 2.0:1 VSWR
- Frequency: VHF Marine Band
- DC Grounding: YES (ohmeter test will read "shorted")
- Polarization: Vertical
- Impedance: 50 ohms
