Create a Fully Integrated System with Ease!

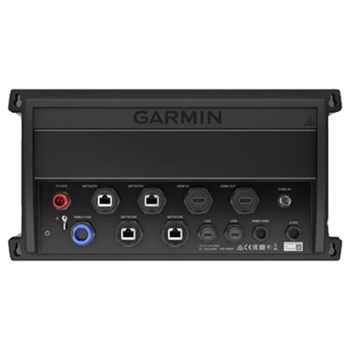

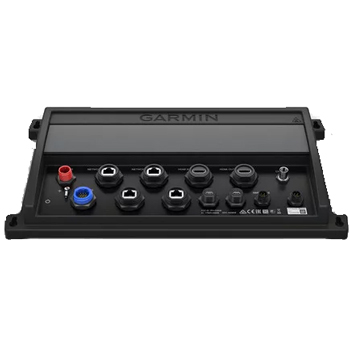

The Garmin GPSMAP 8700 Black Box system will be at the center of you electronics package. Integrate charting with various sonar technologies, as well as autopilot, engine data, cameras, and more and display them all on compatible Garmin marine monitors or third-party touch screen monitors (sold separately). Build and configure a system so everything is conveniently right at your fingertips. This black box provides plenty of networking ports so the options for a full electronics suite are endless. Each 8700 Black Box provides 4 ethernet ports, 2 micro USB connections, wireless connectivity, 1 HDMI in - 1 HDMI out, 4 NMEA 0183 inputs, 2 NMEA 0183 output ports, and is also NMEA 2000 compatible.
Automatically sync your personal preferences and user data for all networked chartplotters with the Garmin SmartMode control for one-touch access to docking, cruising, fishing, and more. NMEA 2000 support and the Garmin Marine network allow you to easily build a full electronics suite from radar to autopilot, cameras, instruments, and forward looking sonar. Add and integrate internal sonar sharing, apps, engine data, and more for a simplified system build. Garmin’s exclusive OneHelm system coordinates many third-party onboard marine products such as lighting, stabilization, Fusion entertainment, and more.
Pair the Garmin 8700 Black Box with the GPS19x external GPS receiver (sold separately and required) to update your position and heading up to 10 times per second offering a more fluid vessel movement on your compatible plotter display. Add a Garmin Card reader into the mix (sold separately) to obtain a convenient remote station providing a single access point for 2 mapping slots that can be vertically or horizontally mounted. Multiple card readers can also be mounted and integrated for additional access points throughout your vessel. The 8700 Black Box is fully compatible with BlueChart G3, BlueChart G3 Vision, LakeVu G3 and LakeVu G3 Ultra charts (all sold separately) via the Garmin card reader (sold separately).
Utilize the Garmin Active Captain app along with built-in WiFi for access to OneChart, smart notifications to receive text and call alerts, and access to the Garmin QuickDraw community as well. The GPSMAP 8700 Black Box is the prime choice for your vessels electronics focal point.
- GPSMAP 8700 Black Box
- Mounting Hardware
- Power Cable
- Right Angle NMEA 0183 with Audio Cable
- NMEA 2000 Power Cable
- NMEA 2000 2 Meter Drop Cable
- NMEA 2000 T-Connectors and Terminators
- Two Year Warranty
- Compatible with Garmin marine monitors or supported third-party touchscreen monitors (sold separately)
- Automatically syncs personal preferences and user data to all networked chartplotters.
- Compatible with Garmin BlueChart G3, BlueChart G3 Vision, LakeVu G3 and LakeVu G3 Ultra
- Supports Garmin Quickdraw Contours Software
- Preloaded with Garmin Worldwide Basemap
- Size: 14.2"W x 7.8"H x 6.7“D
