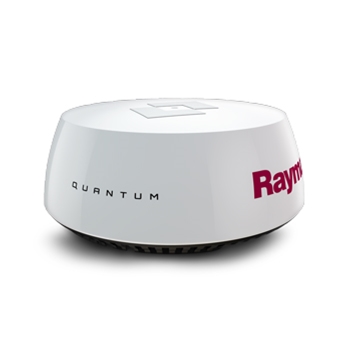

Raymarine’s 18” Dome Radar CHIRP
Raymarine’s Quantum Q24C Radarnot only provides superior Radar Imaging but is a top choice in Dome Radars due to its Simplied Installation, Lightweight design and reduced power consumption.
The Quantum Q24C radar uses CHIRP pulse compression ensuring more energy reaches the target and therefore identifying small weaker targets even when close to strong return structures or vessels and providing enhanced separation and clarity.
The CHIRP pulse compression of the
Quantum Q24C provides excellent target detection and detail down to a distance of 6 meters. The power consumption of the Quantum Q24C is only 17 watts while transmitting and 7 watts while on standby. The solid state construction and low power consumption of the Quantum Q24C also make the emissions from it much safer than traditional magnetron radars. Superior radar imaging from FLIR’s exclusive ATX, advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality is also an integral part of the performance of the Quantum Q24C radar dome.
Raymarine Quantum Q24C 18" CHIRP Radar Box Contents
Each Raymarine Quantum Q24C 18" CHIRP Radar comes with:
- Quantum Q24C Radome w/Wi-Fi and Ethernet
- 15M Power/Data Cable
- Two-Year (Upgradable to 3 years when Registered) Warranty
- Size: 21.3"W x 8.25"H
Raymarine Quantum Q24C 18" CHIRP Radar Key Features
- 18” Dome Radar
- Wi-Fi or Raynet Connections
- 1/16th – 24NM Range
- 4.9° Horizontal BeamWidth
- Compatible with any Raymarine MFD with Lighthouse II Software
Product Accessories for Raymarine Quantum Q24C 18" Wired CHIRP Radar with 15M Cable
Our Price:$316.00
SKU: SAPMF57M1B
Seaview 5" Modular Radar Mount and Plate Bundle - Forward
The Seaview Radar Mount with Mounting Plate is not only stylish but also very sturdy and works on most radar domes. A list of compatible domes is below.
Our Price:$316.00
SKU: SAPMA57M1B
Seaview 5" Modular Radar Mount and Plate Bundle - Aft
The Seaview Radar Mount with Mounting Plate is not only stylish but also very sturdy and works on most radar domes. A list of compatible domes is below.
*Aft Raked Mount
Our Price:$300.00
SKU: SASM18R
Seaview Radar Mast Mount
The Seaview Mast Mount provides a very sturdy platform for your compatible radar.
