Thermal Imaging Camera with FLIR Boson Thermal Imaging Core

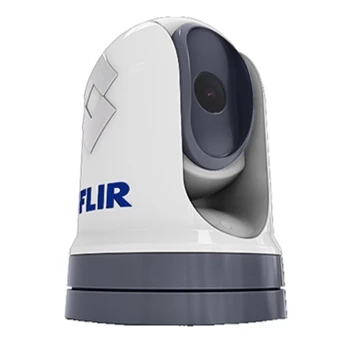

FLIR’s M332 Stabilized Thermal Camera offers 360-degree continuous pan and 90-degree tilt. This advanced thermal camera provides a solution to situational awareness even in the darkest nights with 320 x 256 thermal resolution and 4x Continuous E-Zoom. FLIR’s Boson Thermal Imaging Core provides thermal refresh rates up to 30Hz and advanced image processing.
The M332 is built to withstand the roughest seas while still providing unmatched performance. Two-axis mechanical stabilization eliminates the effects of pitch, heave and yaw- providing accurate thermal images in critical moments. The built in Attitude Heading Reference Sensor provides horizontal stabilization to the camera keeping the camera on scene as you maneuver rough and unpredictable seas. FLIR’s proprietary Digital Detail Enhancement provides crisp, clear images by overcoming the problem of finding low contrast targets in high dynamic range scenes.
Pair the M332 with a Raymarine Axiom MFD to take advantage of FLIR’s ClearCruise Intelligent Thermal Analytics which provides audible and visual alerts when "non-water" objects such as a boat, buoy, or person is identified with your scene. You must have an Axiom display to have this feature.
Connecting the FLIR M332 has never been simpler. H.264 IP Video Steam, HD-SDI lossless and analog video output make integrating your M332 easier than ever. The optional FLIR Joystick Control Unit allows for control of the pan and tilt features from a non-Raymarine chartplotter. Want full control of your FLIR from your chartplotter? Select from Raymarine’s Axiom series and enjoy full multifunction display integration.
*Please note Garmin POE Coupler and Garmin Marine network cable are required when connecting to Compatible Garmin GPSMAP units.
FLIR M332 Box Contents
Each FLIR M332 Comes with:
- M332 Camera
- Camera Base-Seal
- Camera Gasket
- Raynet-to-RJ45 Adaptor Cable (4.72”)
- Right Angled RayNet-to-RayNet Cable (9.8’)
- Right-Angled BNC-to-BNC Cable (9.8’)
- Right-Angled 3 Pin Power Cable (9.8’)
- Mounting Riser
- 3 x Camera Fixings (nuts, done nuts, spring and flat washers and threaded studs)
- 2 x Self-Adhesive Decals (for ball-down mounting only)
- Documentation Pack
- 2 Year Warranty
FLIR M332 Key Features
- Advanced Gyro-Stabilization
- Detects Targets in Complete Darkness
- Thermal Resolution up to 320x256
- Smooth Image Refresh Rate of up to 30 Hz
- Integrated Attitude Heading Reference Sensor (AHRS)

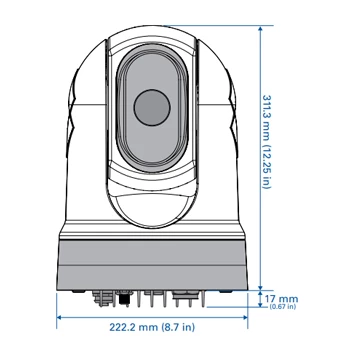

- Size: 8.7"W x 12.25"H x 8.7“D
FLIR M332 Datasheet- Click Here
FLIR M332 Mounting Template- Click Here
