Airmar B175HW Thru-Hull CHIRP 12-Degree Transducer, Garmin 12-Pin

Airmar B175HW Thru-Hull CHIRP 12-Degree Transducer, Garmin 12-Pin

Airmar B175 1kW high-wide frequency CHIRP transducer, Garmin 12-pin connector. Low profile, bronze thru-hull housing for vessels with deadrises of 8-15 degrees.
  • SKUAIB175C12HW12G
  • MAN#B175C-12-HW-12G
  • ID#: 6820
Our Price:
$1,279.00
Availability:
In Stock
Shipping:
Free Ground Shipping!
Condition:
Brand New
  • Mounting Style: Low Profile Tilted Element Thru Hull
  • Deadrise: 12-Degree, Suitable for 8-15 Degrees.
  • Frequency Range: High frequency: 150 to 250 kHz, 25-Degree Beam Width. 100kHz of Total Bandwidth. Provides CHIRP Sonar.
  • Power Output: 1kW
  • Max Depth: 152m (500 feet) in ideal water conditions, best case scenario
  • Transducer Functions: Depth and Water-Temperature
  • Cable Length: 33-feet (10M)
  • Transducer Material: Bronze

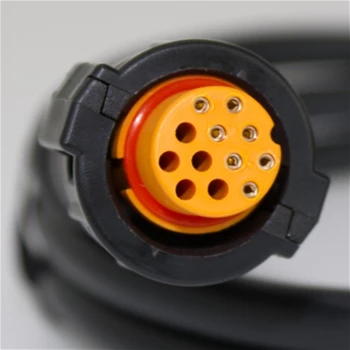

  • Connector Style: Garmin 12-Pin
  • Ideal for: Fiberglass or Wood Hulls. Shallow water with bottom detail and fish targeting. Stepped, planning or displacement hulls.
  • Not Recommended for: Steel Hulls
    • B175C Manual Click Here
