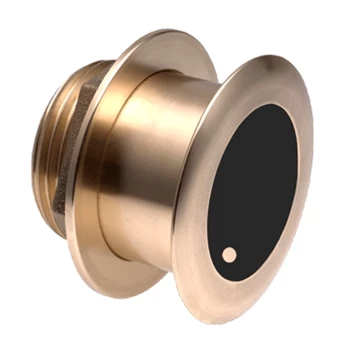

Airmar B175HW Thru Hull CHIRP 20-Degree Transducer, for Airmar Mix and Match, or Bare Wire Connection

Free Ground Shipping!

Airmar B175HW Thru Hull CHIRP 20-Degree Transducer, for Airmar Mix and Match, or Bare Wire Connection

Airmar Low Profile 20 degree tilt High Wide Frequency CHIRP transducer. No Connector. Low profile, bronze thru-hull housing for vessels with deadrises of 16-24 degrees.
  • SKUAIB175C20HWMM
  • MAN#B175C-20-HW-MM
  • ID#: 7966
(Rating 92)
Our Price:
$1,179.00
Availability:
In Stock
Shipping:
Free Ground Shipping!
Condition:
Brand New
  • Mounting Style: Low Profile Tilted Element Thru Hull
  • Deadrise: 16-24 Degrees
  • Frequency Range: High Wide frequency: 150-250 kHz, 25-Degree Beam Width. Provides CHIRP Sonar.
  • Power Output: 1kW
  • Max Depth: 150m (500 feet) in ideal water conditions, best case scenario
  • Transducer Functions: Depth and Water-Temperature
  • Cable Length: 30-feet (9M)
  • Transducer Material: Bronze
  • Connector Style: Mix-and-Match connector. Ideal for bare wire connection. Does not include Mix-and-Match Cable
  • Ideal for: Fiberglass or Wood. Stepped, planning or displacement hulls.
  • B175C Manual Click Here
    B175 Dimensions
