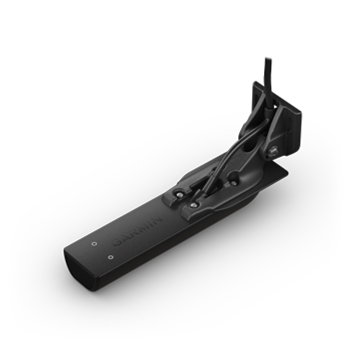

See Below and around your vessel in ultra-high definition! View Fish and structure with extreme clarity. Compatible with specific Garmin units, the GT56UHD transducer includes both a transom and trolling motor mount allowing you to decide where to mount this!.
High Wide CHIRP Sonar operates on a frequency range of 150-240kHz and reaches depths of 800' while the UHD (Ultra High Definition) ClearVu and SideVU sonar provides images of fish and structure below your boat in crisp clear detail - so clear that you can even see fish hanging off branches of submerged trees! Plus with UHD you can now even distinguish between bigger and smaller fish and even see individual fish targets! This is an all in one transducer! UHD ClearVu images will reach 200' below the boat, while the SideVu sonar offers 2 frequency settings for an 20% greater range!
Compatible with Garmin echomap UHD 73/74/93/94sv models, echomap Ultra 106sv/126sv, GPSMAP 743xsv/943xsv/1243xsv and 8400/8600xsv GPS/Fishfinder Series
*High Wide CHIRP Frequency Range - High Wide CHIRP 150-240kHz, Maximum Depth 800'
*Ultra High Definition ClearVu/Side Vu Frequency - 0.8MHz (800kHz) CHIRP Range, 790-850kHz
*Ultra High Definition ClearVu/SideVu Frequency - 1.2MHz (1000kHz) CHIRP Range, 940-1100kHz
*Ultra High Definition ClearVu/SideVu Frequency - 455kHz CHIRP Range, 425-485kHz
12 Pin Connection, 25' Cable and Includes Depth and Temperature Readings
Garmin GT56UHD-TM Transducer Box Contents
Each Garmin GT56UHD-TM Transducer Comes with:
- GT56UHD-TM transducer with Depth and Temp, 12Pin connection and 25' Cable
- Transom mount
- Trolling motor mount
- Mounting hardware
- Documentation
- One Year Warranty
Garmin GT56UHD-TM Transducer Key Features
- All in One Transom or Trolling Motor mounted transducer
- Ultra High Definition for extended range and performance
- High Wide CHIRP, Clear VU and SideVu
- See exception detail of fish and structure up to 200' below your boat!
- SideVü sonar now has 20% greater range at 1,000 kHz
