Garmin GT24UHD-TM Ultra High Definition Transducer

Free Ground Shipping!

Garmin GT24UHD-TM Ultra High Definition Transducer

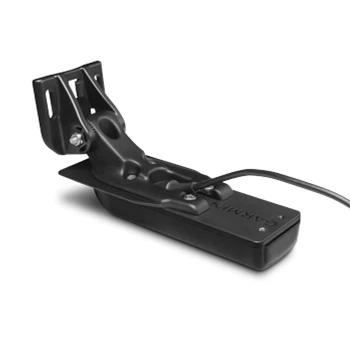

Garmin's GT24UHD-TM Transducer pairs with your Garmin GPSMAP 8400/8600xsv series and echoMAP Ultra GPS/Fishfinder to provide exceptional High Definition images of fish and structure below your vessel! The GT24 also provides accurate water temperatures.
  • SKUGAX12908
  • MAN#010-12908-00
  • ID#: 5956
Our Price:
In Stock
Free Ground Shipping!
Brand New

Ultra High Definition Transducer with ClearVu Imaging

The GT24UHD is an 8 pin all in one transducer providing Ultra High Definition ClearVu and high frequency chirp. ClearVu sonar offers a photo like image down to 200 feet below the boat. You can actually see rocks, brush piles, and even a ship wreck making it great for bottom fishing.

The GT24UHD uses 350 watts of High Frequency Chirp sonar sending down multiple frequencies, providing great target separation in the water column. You can see the difference between small and larger fish and even see individual fish swimming in bait balls. The transom and trolling motor mounts are included for quick installation. An accurate temperature sensor is also included in the GT24UHD-TM.

Compatible with Garmin GPSMAP 8400/8600xsv GPS/Fishfinder Series and echoMAP Ultra. *Does Not provide SideVu Sonar

*High Wide CHIRP Frequency Range - High Wide CHIRP 150-240kHz, Maximum Depth 800'

*Ultra High Definition ClearVu Frequency - 0.8MHz (800kHz) CHIRP Range, 860-880kHz, Maximum Depth 200'

8 Pin Connection, 20' Cable and Includes Depth and Temperature Readings

Garmin GT24UHD-TM Transducer Box Contents
Each Garmin GT24UHD-TM Transducer Comes with:
  • GT24UHD-TM transducer with Depth and Temp, 8Pin connection and 20' Cable
  • Transom mount
  • Trolling motor mount
  • Mounting hardware
  • Documentation
  • One Year Warranty
Garmin GT24UHD-TM Transducer Key Features
  • All in One Transom or Trolling Motor mounted transducer
  • Ultra High Definition for extended range and performance
  • High Wide CHIRP, Clear VU
  • See exception detail of fish and structure up to 200' below your boat!
