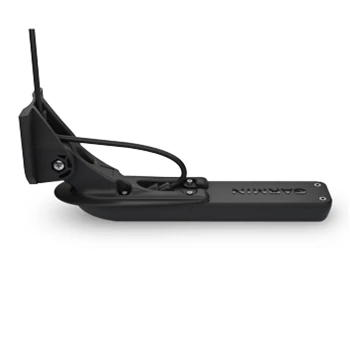

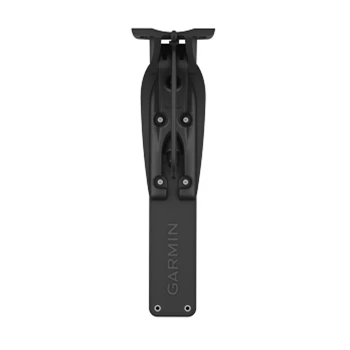

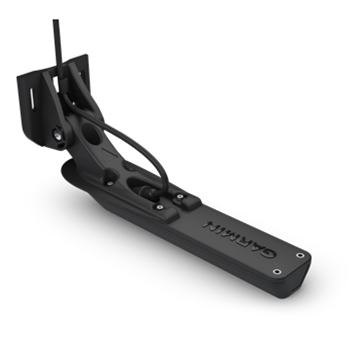

The GT34-UHD Transom Mount Transducer pairs with Garmin's GCV20 Ultra-High Definition Sonar box to provide exceptional underwater images in near photo-like detail. WIth a downward facing element and frequencies ranging from 800kHz to 1,200kHz images are crisp and clear below and to the left and right of your boat.
- Ultra High Definition ClearVu:0.8MHz (800kHz) CHIRP Range: 760-880 kHz
- Ultra High Definition SideVu:1.2MHz (1,200kHz) CHIRP Range: 1,060-1,170 kHz
- Maximum Depths: 200' UHD ClearVu & 125' each side UHD SideVu - 250' total - Max Depth 30'
- 12 Pin Connection
- 20' Transducer Cable Length
Product Accessories for Garmin GT34UHD-TM Transom Mount Transducer
Stern Saver Transducer Mount
Don't drill holes in your transom! Stern Saver keeps your transom free of transducer mounting bracket holes. The included adhesive creates a bond between the polyethylene block and the fiberglass of your boat.
PropSpeed FoulFree Transducer Foul-Release Coating
PropSpeed's FoulFree Transducer Coating Kit is the biggest advancement in transducer paint and coatings in the last 30 years. It will keep your thru-hull or transom mount transducer free of marine growth. This nontoxic formula has zero leaching of harmful chemicals into water unlike traditional anti-fouling bottom paints and is certified by Airmar.
Garmin Transom Mount Bracket
Garmin's Transom Mount bracket allows you to attach your compatible 4-, 8- or 12-pin transducer to the transom of your boat providing excellent sonar returns at all speeds.
Garmin 12-pin 10' Transducer with ID Extension Cable
Garmin 10 foot transducer extension cable for Garmin 12-Pin Transducers.
Garmin 12-pin 30' Transducer with ID Extension Cable
Garmin 30 foot transducer extension cable for Garmin 12-Pin Transducers.
