Garmin GT8HW-IF Transducer

Garmin GT8HW-IF Transducer

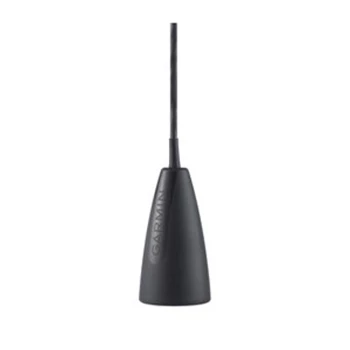

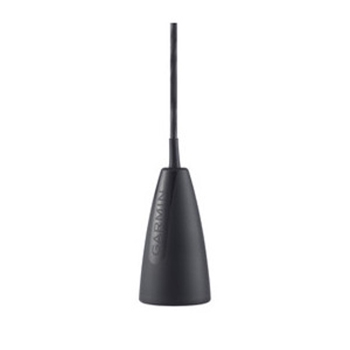

Garmin's GT8HW-IF Transducer is designed for the Ice Fisherman and provides depth and temperature readings. Providing both Narrow and Wide Beam Options the GT8 High Wide provides crisp clear target separation and definition.
  • SKUGAX1240120
  • MAN#010-12401-20
  • ID#: 4701
Our Price:
$119.95
Availability:
Usually Ships in 3-5 Days
Shipping:
Free Ground Shipping!
Condition:
Brand New

Garmin's GT8HW-IF Transducer is designed with the ice fisherman in mind. Providing clear definition and separation of fish, bait and bottom. Adjustable Beam width of 16-24° the GT8HW provides Traditional CHIRP (145-240kHz) with a 250W power rating.

Includes GT8 HW-IF Transducer, Float and Documentation.

Adapter cable may be necessary for connection to certain units
  • echoMAP CHIRP 7xdv requires adapter cable 010-11948-00
  • GPSMAP 5x7xs and 7x1xs requires adapter cable 010-11948-00
  • GPSMAP 8x0xs and 10x0xs requires adapter cable 010-11948-00
  • GPSMAP 7400xsv and 7600xsv requires adapter cable 010-11948-00
  • Not Compatible with echoMAP CHIRP 7Xsv and 9Xsv units

  • Cable length: 8 ft
  • Pin Configuration: 4 Pin Transducer Connection
  • Frequency: CHIRP 145-240kHz kHz
  • Transmit power: Traditional CHIRP 250W
  • Max Depth: Traditional 800 ft
