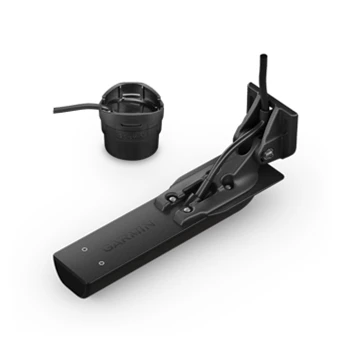

Bundle Package includes GT36 Transom Mount and GT8HW In-Hull Transducers.
The GT36-UHD Transom Mount Transducer provides exceptional images below and to the sides of your vessel in near photo-like detail. With a downward facing element and frequencies ranging from 800kHz to 1,000kHz images are crisp and clear below and to the left and right of your boat.
- Ultra High Definition ClearVu:0.8MHz (800kHz) CHIRP Range: 790-850 kHz
- Ultra High Definition SideVu:1.0MHz (1,000kHz) CHIRP Range: 940-1100 kHz
- Maximum Depths: 400' UHD ClearVu & 250' each side UHD SideVu - 500' total
- 12 Pin Connection
- 25' Transducer Cable Length
Garmin's GT8HW In Hull Transducer is a perfect solution for anglers that want to install a transducer inside a fiberglass hull with less than a 6° deadrise. The GT-8 HW IH offers High-Wide CHIRP traditional sonar (145-230 kHz) with a 250W power rating.
Includes GT8 HW IH In-Hull Transducer, In-Hull Fitting and Documentation
- Frequency: CHIRP 145-230 kHz
- Transmit power: 250W
- Max Depth: 800 ft Freshwater
- 8 Pin Connection
- 20' Transducer Cable Length
The GT36/GT8HW transducer combination is great for boaters who want to be able to speed across the water and keep a good lock on bottom depth and take advantage of DownVu / SideVu. The GT8HW In Hull transducer provides traditional sonar while the GT36 Transom Mount will provide SideVu & DownVu once you slow down to fish. The transducers connect in a Y-Cable for a single connection to your compatible Garmin unit.
Garmin GT36-TM / GT8HW-IH Transducer Bundle Box Contents
Each GT36-TM / GT8HW-IH Transducer Bundle Comes with:
- GT36UHD-TM transducer with 12-pin connector and 25' Cable
- Transom and Trolling Motor Mounts and Mounting Hardware
- GT8HW-IH transducer with 8-pin connector, 20' Cable and In-Hull Fitting
- Y-cable (12-pin and 8-pin transducer to 12-pin sounder adapter cable)
- Documentation
