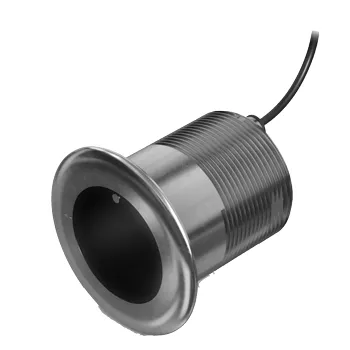

The Garmin GT17M-IF CHIRP transducer is the premium choice for performance and cruising boats providing 1kW midband CHIRP (80-165 kHz) to offer clear depth returns, structure, and fish arches on your compatible Garmin display. This transducer is configurable for a wide variety of boat hull materials such as fiberglass, composite, steel, aluminum, and wood making this a great option for virtually anyone!
This 8-pin transducer option defines fish and targets up to 1,800ft in saltwater and up to 2,400ft in freshwater. A broad frequency range of 80-165 kHz gives anglers a wider coverage area on a medium frequency range with optimum ping sensitivity that provides low noise, high resolution, and good target separation. This makes it easier than ever to distinguish fish and structure making sure every cast is a successful one.
Built with a durable stainless-steel housing, the GT17M-IF is a flush mount style thru-hull option that offers minimum drag for optimum performance, beam orientation, and easy plug and play installation. Auto ID technology enables the sonar in your chartplotter to automatically configure and identify the GT17M-IF as the transducer being used.
20° Tilt Angle works with deadrises from 16-24°
*Please Note, Your compatible display must be updated with July 2024 Software update or newer for use with a GT17M-THF
Compatible with the Following Displays / Sonar Modules
- GSD 25
- GSD 26 via Manual Configuration
- GSD 28
- GPSMAP 9000 Series (with compatible GSD Sonar Box)
- GPSMAP 8400xsv/8600xsv
- GPSMAP 8400/8600 Series (with compatible GSD Sonar Box)
- GPSMAP 10x2xsv/12x2xsv Keyed Series
- GPSMAP 10x2/12x2 Keyed Series (with compatible GSD Sonar Box)
- GPSMAP 7x3xsv/9x3xsv/12x3xsv Series
- GPSMAP 7x3/9x3/12x3 Series (with compatible GSD Sonar Box)
