Navico B150M Thru-Hull CHIRP 20-Degree Transducer, 9-Pin XSONIC

Free Ground Shipping!

Navico B150M Thru-Hull CHIRP 20-Degree Transducer, 9-Pin XSONIC

Navico B150M Thru-Hull CHIRP 20-Degree Transducer, 9-Pin XSONIC

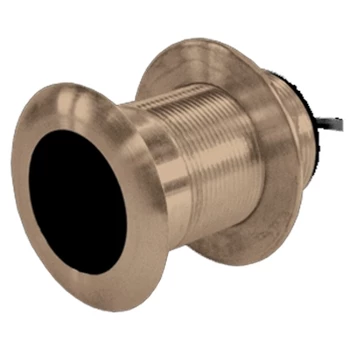

Navico B150M 300 Watt Medium Frequency CHIRP Transducer, with Navico 9-Pin XSONIC plug. Low profile, bronze thru-hull housing for vessels with deadrises of 16-24 degrees.
  • SKUNVX13922001
  • MAN#000-13922-001
  • ID#: 7685
Our Price:
$359.95
Availability:
Usually Ships in 3-5 Days
Shipping:
Free Ground Shipping!
Condition:
Brand New

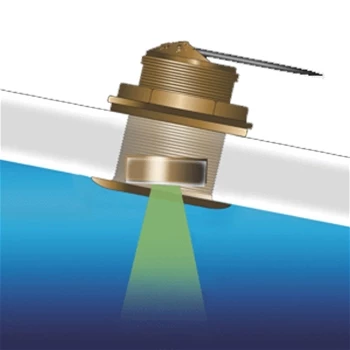

  • Mounting Style: Low Profile Tilted Element Thru Hull
  • Deadrise: 20-Degree, Suitable for 16-24 Degrees.
  • Frequency Range: Medium frequency: 95 to 155 kHz, 26 -17 Degree Beam Width. 60kHz of Total Bandwidth. Provides CHIRP Sonar.
  • Power Output: 300 Watt
  • Max Depth: 183m (600 feet) in ideal water conditions, best case scenario
  • Transducer Functions: Depth and Water-Temperature
  • Cable Length: 33-feet (10M)
  • Transducer Material: Bronze
  • Connector Style: Navico 9-Pin XSONIC Connector
  • Ideal for: Fiberglass or Wood Hulls. Shallow water with bottom detail and fish targeting. Stepped, planning or displacement hulls.
  • Not Recommended for: Steel Hulls
    • B150C Manual Click Here
