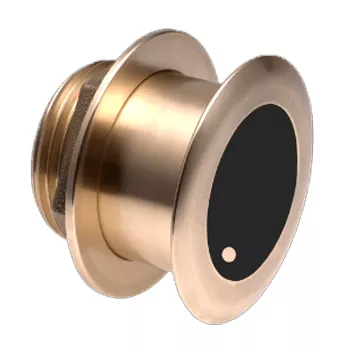

Raymarine B175MW Thru-Hull CHIRP 20-Degree Transducer

Raymarine B175MW 1kW medium frequency CHIRP transducer, bronze thru-hull housing for vessels with deadrises of 16-24-degrees.

SKURAXA80801
MAN#A80801
ID#: 8457

(Rating 89)

Our Price:

$1,799.00

Availability:

Usually Ships in 3-5 Days

Shipping:

Free Ground Shipping!

Condition:

Brand New

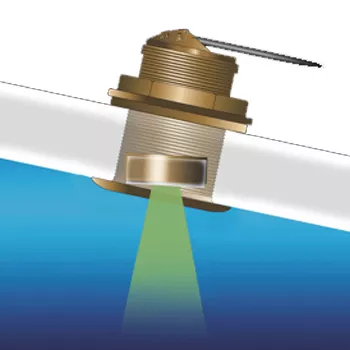

Mounting Style: Low Profile Tilted Element Thru Hull

Deadrise: 20-Degree, Suitable for 16-24 Degrees

Frequency Range: Medium frequency: 60-100 kHz, 57-73 Degree Beam Width. 40kHz of Total Bandwidth. Provides CHIRP Sonar.

Power Output: 1kW

Max Depth: 400M (1,300 feet) in ideal water conditions, best case scenario

Transducer Functions: Depth and Fast-Response Water-Temperature

Cable Length: 30-feet (9M)

Transducer Material: Bronze

Connector Style: Raymarine 11-Pin

Ideal for: Fiberglass or Wood Hulls. Shallow water with bottom detail and fish targeting. Stepped, planning or displacement hulls.

Not Recommended for: Steel Hulls
