Vesper Cortex M1 SmartAIS Transponder

Vesper Cortex M1 SmartAIS Transponder

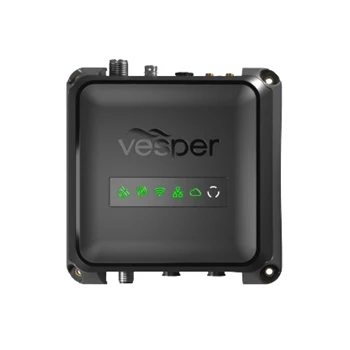

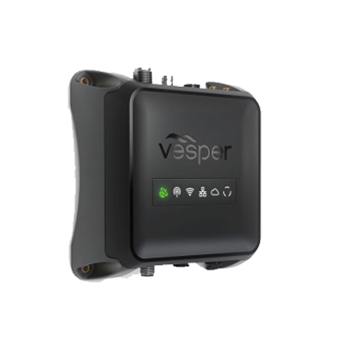

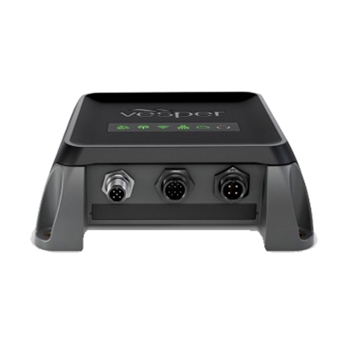

The Vesper Cortex M1 hub is a full Class B SOTDMA SmartAIS monitoring system which pairs with Vesper's H1 or H1P handset for full VHF capabilities.
  • SKUVE100131
  • MAN#100131
  • ID#: 6435
(Rating 82)
Our Price:
$1299.00
Availability:
In Stock
Shipping:
FREE 2 Day Air!
Condition:
Brand New
free premier shipping

The Vesper Cortex M1 hub is a full Class B SOTDMA (Self-Organized Time Division Multiple Access)SmartAIS monitoring system. A built-in heading sensor is a key feature and alerts other vessels nearby of your course of direction and helps them more accurately predict potential collisions, perfect for anchor watch. An integrated no-loss splitter allows you to share a single antenna with another VHF offering optimum performance for your VHF and AIS functionalities minimizing the need for multiple antennas on board. Please note an H1 or H1P portable handset (sold separately) is required for full VHF capability.

NMEA 2000 connectivity makes it easier than ever to add the Cortex M1 hub to an existing NMEA 2000 network to share numeric data so all other NMEA components throughout the vessel benefit from the M1’s fast GPS signals. This intelligent hub can see things you can’t see and is intuitive enough to let you know when your anchor is dragging, knows when someone falls overboard, and can notify you if something is wrong whether you are on or off the vessel via a dedicated app through your smartphone or tablet.

This connectivity hub is engineered for low power consumption which is ideal for when you need to conserve power when anchored or on a long voyage. Galvanically isolated ports on the M1 hub create a conductive electrical path to protect your electronics and marine equipment from high or stray current damage, ground loops, and corrosion.


* Before we can program your AIS we need a few pieces of information and all AIS units require programming before shipping. Please fill out the form below and fax (910-575-9543) or email (sales@thegpsstore.com) it back to us.
Click here to download a copy of the AIS programming form.
You will also need an MMSI number to complete the above form, if you dont already have one, you can get that here.

Vesper Cortex M1 SmartAIS Box Contents
Each Vesper M1 AIS Comes with:
  • Vesper M1 Hub
  • GPS Antenna
  • Power and Audio Cables
  • External Sensors Cable
  • External WiFi Antenna
  • VHF Patch Cable
  • Two Year Warranty
Vesper Cortex M1 SmartAIS Key Features
  • Class B SOTDMA Send and Receive AIS
  • DSC Calling
  • Combined VHF and AIS Transceiver
  • Optional Wired or Wireless Handset
  • 10Hz GPS Antenna
  • Size: 6.625"W x 3.625"H x 2.31“D
Vesper M1 Hub Installation Manual- Click Here
