7” GPS/Fishfinder with Coastal Mapping, CHIRP ClearVu and SideVu Sonar!

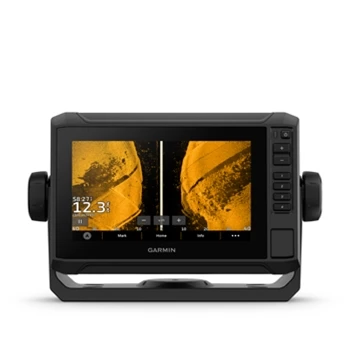

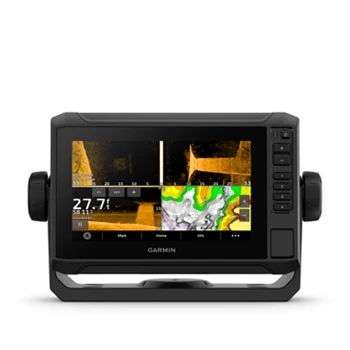

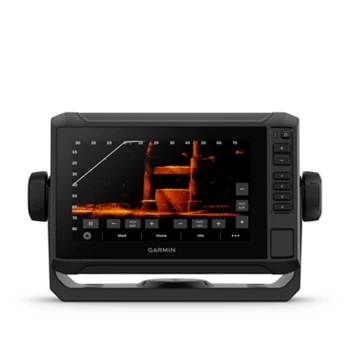

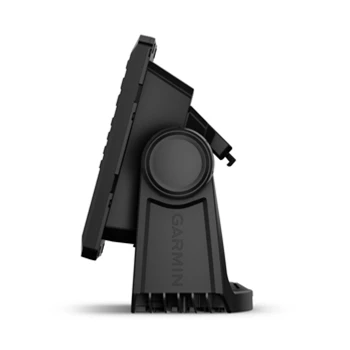

Garmin's Echomap UHD 74sv combines a bright 7" Sunlight viewable, keyed assist touchscreen display along with a built in enhanced CHIRP ClearVu/SideVU sonar system. Rugged and Reliable, the 74sv comes packaged with a GT54 Transom Mount Transducer for exceptional underwater imaging.

Detailed Garmin Navionics+ Mapping for the Coastal waters are preloaded in every ECHOMAP UHD2 74SV! The integrated chart data covers coastal waters and can easily be enhanced with additional charting via the microSD card slot. Garmin offers several Premium chart options for this unit. Available by region, Garmin Navionics Vision+ charts include both coastal and inland coverage. Data is sourced from Garmin and Navionics in order to provide you with exceptional detail. These charts include 1-year of daily updates, ensuring your chart data is always current! Premium features include High Resolution Relief Shading, High Resolution Satellite Imagery, Sonar Imagery, Aerial Photography, SideScan Images and More! Garmin Navionics Vision+ charts require premium content to be downloaded post purchase.

Internal CHIRP Scanning Sonar - the 74sv comes packaged with a GT54UHD Transducer so that you can see crisp images of structure and fish below and to the left and right of your vessel. The GT54UHD Transducer with depth and temperature readings will provide UHD Frequency of 800kHz for clear images down to 200' deep and UHD SideVu Frequency of 1200kHz reaching 125' left and right for a total of 250' to a max depth of 30'. CHIRP High Wide frequencies of 150-240kHz provide enhanced images with excellent target separation down to 800'. The GT54UHD also includes a SideVu Frequency of 455kHz which will increases the Maximum Range to 500' side to side - Please note all depths listed are maximums and will change based on water clarity and conditions.

Livescope Compatible! View advanced, Real time sonar images of structure, bait and fish swimming around your boat. Pair your ECHOMAP UHD with a Livescope Sonar system and view underwater detail like never before! Built with AHRS (Attitude Heading Reference System), Livescope ensures your sonar view stays stable even in rough seas! LiveScope Down provides images of structure and swimming fish up to 200' below your boat while the Live Scope Forward will assist you in scouting and locating fish that are swimming ahead of your cast up to 200'. Easily adjustable, the Live Scope can be set to the mode that works best for your fishing needs. With exceptional views and sonar capabilities you can not only see what is going on in real time, you may with just a bit of practice even be able to differentiate between fish species! *Livescope System Sold Separately

Network options in the 74sv include NMEA2000 and WiFi Connectivity. NMEA2000 allows you to connect and share numerical data across devices such as Autopilots, digital switching, AIS and more. Wi-Fi connectivity is built into every UHD2 63cv and allows your to wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 6", 7 or 9" Chartplotter while also enabling you to wirelessly connect to a Force Trolling Motor (sold separately) to create and follow routes, navigate to waypoints. control speed, check battery and more!

For an advanced, affordable combination unit look no further than the ECHOMAP UHD2 from Garmin!

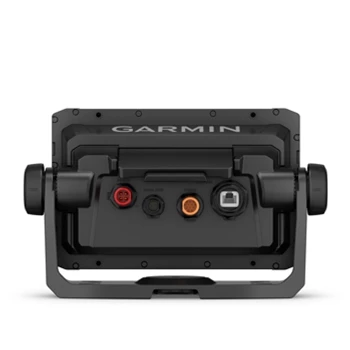

*Please note, This display has a single 12 Pin Transducer Port. Garmin 12 Pin orange connectors do not support speed thru water via a speed wheel. This display will provide speed over ground via GPS. Speed thru water can be achieved by adding a NMEA Smart sensor, sold separately.
