9” Chartplotter with Inland Lake Mapping, Keyed Assist Touchscreen and CHIRP ClearVu/SideVu Sonar!

Garmin's ECHOMAP UHD2 93sv offers a 9" Sunlight viewable, keyed assist touchscreen display! Preloaded with Inland Lake Maps for detailed charting along with a built in enhanced CHIRP ClearVu/SideVU sonar system the 93sv is rugged and reliable. Includes GT-56 Transom Mount Transducer for CHIRP, ClearVu and SideVu Scanning Sonar

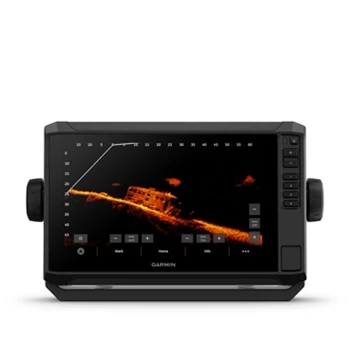

A advanced internal Sonar System The UHD2 93sv comes packaged with a GT56 Transom Mount Transducer providing detailed photo-like images below and to the left and right of your vessel. High Wide CHIRP Sonar operates on a frequency range of 150-240kHz and reaches depths of 800' while the UHD (Ultra High Definition) ClearVu and SideVU sonar provides images of fish and structure below your boat in crisp clear detail - so clear that you can even see fish hanging off branches of submerged trees! Plus with UHD you can now even distinguish between bigger and smaller fish and even see individual fish targets! This is an all in one transducer! UHD ClearVu images will reach 200' below the boat, while the SideVu sonar offers 2 frequency settings for a 20% greater range!

Livescope Compatible! View advanced, Real time sonar images of structure, bait and fish swimming around your boat. Pair your ECHOMAP UHD with a Livescope Sonar system and view underwater detail like never before! Built with AHRS (Attitude Heading Reference System), Livescope ensures your sonar view stays stable even in rough seas! LiveScope Down provides images of structure and swimming fish up to 200' below your boat while the Live Scope Forward will assist you in scouting and locating fish that are swimming ahead of your cast up to 200'. Easily adjustable, the Live Scope can be set to the mode that works best for your fishing needs. With exceptional views and sonar capabilities you can not only see what going on in real time, you may with just a bit of practice even be able to differentiate between fish species! *Livescope System Sold Separately

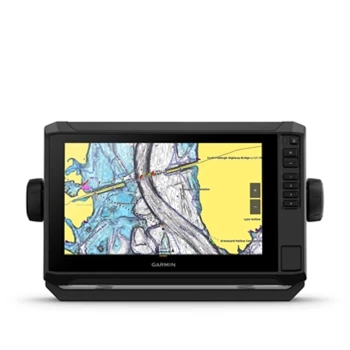

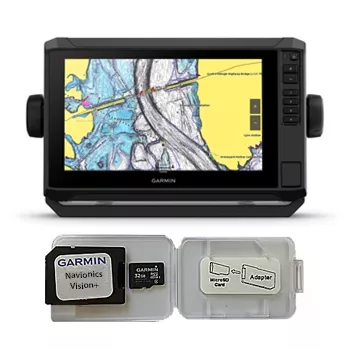

Detailed Charts! Preloaded with Garmin Navionics+ Mapping for the Inland Lakes, the integrated chart data covers over 18,000 lakes with 1' contours and can easily be enhanced with additional charting via the microSD card slot. Garmin offers several Premium chart options for this unit. Available by region, Garmin Navionics Vision+ charts include both coastal and inland coverage. This exclusive bundle includes (1) Garmin Navionics Vision+ Chart in the region of your choice. Data is sourced from Garmin and Navionics in order to provide you with exceptional detail. These charts include 1-year of daily updates, ensuring your chart data is always current! Premium features include High Resolution Relief Shading, High Resolution Satellite Imagery, Sonar Imagery, Aerial Photography, SideScan Images and More! Garmin Navionics Vision+ charts require premium content to be downloaded post purchase.

Available Network options in the 93sv include NMEA2000 and WiFi Connectivity. NMEA2000 allows you to connect and share numerical data across devices such as Autopilots, digital switching, AIS and more. Wi-Fi connectivity is built into every UHD2 63cv and allows your to wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 6", 7 or 9" Chartplotter while also enabling you to wirelessly connect to a Force Trolling Motor (sold separately) to create and follow routes, navigate to waypoints. control speed, check battery and more!

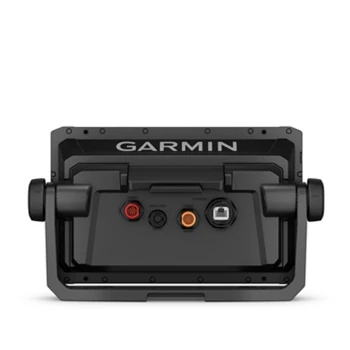

*Please note, This display has a single 12 Pin Transducer Port. Garmin 12 Pin orange connectors do not support speed thru water via a speed wheel. This display will provide speed over ground via GPS. Speed thru water can be achieved by adding a NMEA Smart sensor, sold separately.
