Garmin GMR 24 xHD3 Dome Radar with Seaview Mount Bundle

Free Ground Shipping!

Garmin GMR 24 xHD3 Dome Radar with Seaview Mount Bundle

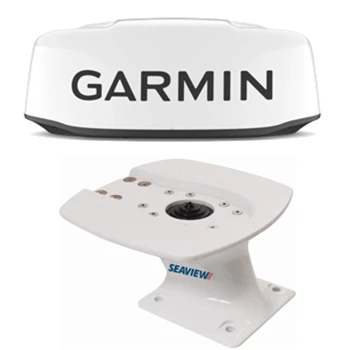

The Garmin GMR 24 xHD3 Dome Radar with Seaview Mount Bundle includes the standard Garmin 24 xHD3 Dome Radar package and the Seaview Aft Raked Mount and Plate Bundle.
Instant Savings with Value Bundle!
  • SKUGA02842RB
  • MAN#010-02842-00
  • ID#: 7730
(Rating 91)
Our Price:
$2,999.00
Availability:
In Stock
Shipping:
Free Ground Shipping!
Condition:
Brand New

High-Definition Magnetron Radar with Dual Range Mode!

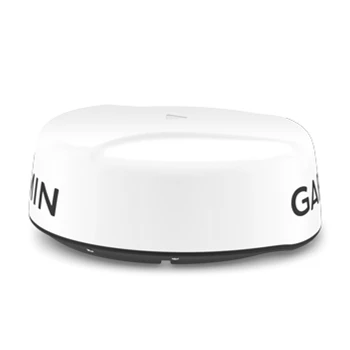

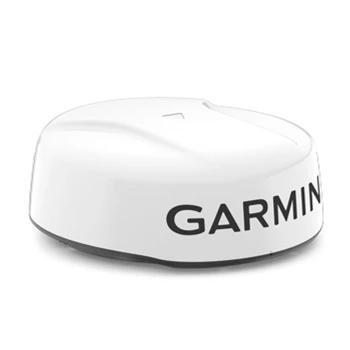

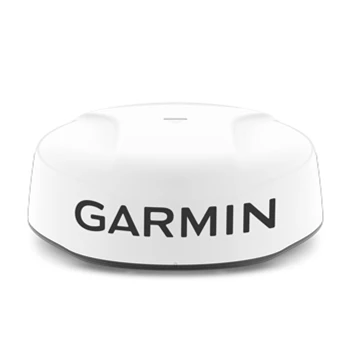

Looking for advanced features in a dome radar? The GMR 24 xHD3 features a 4kw power output, superior traffic, obstacle, and weather detection and a 3.7-degree horizontal beamwidth.

The scan averaging technology is a first for a magnetron radar. It filters out sea clutter and interference to enhance the detection and display of constant targets. Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales. The 60 RPM rotation speed has a faster screen refresh rate making this radar great when traveling at high speeds and also detects boats coming towards you sooner. The 24xhd3 automatically adjust levels to optimum settings for harbors, near shore and offshore in open waters taking the guess work out of your settings for the specific location. The Dual range overlay provides a split screen with side-by-side images on your compatible chartplotter. You can independently control the range settings for both close and long range.

Overlay the radar image on your compatible chartplotter and you can track up to 30 targets to help avoid collisions with MARPA target tracking (with appropriate sensors, sold separately). Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land. The radar has a guard zone feature allowing you to receive an alarm when an object enters the zone. Locate flocks of birds at the water’s surface with the auto bird gain feature. The 24xhd3 radar is a great addition to your Garmin network.

The 24 xHD3 Radar with Seaview Mount bundle allows for easier mounting of the radar. Radar's also work better the higher they are mounted as it extends the horizon and raising your radar above a T-Top or hard top usually gets the radar above other antennas, lights or mounts for better performance.

Garmin GMR 24 xHD3 Dome Radar Box Contents

Each Garmin GMR 24 xHD3 Dome Radar Comes with:
  • Radar Box Contents:
  • GMR 24 xHD3 Dome Radar
  • Power Cable (15m/49.21ft)
  • Network Cable (15m/49.21ft)
  • Mounting Hardware Kit and Template
  • Installation Instructions
  • 2-Year Warranty
  • Radar Mount Box Contents:
  • Seaview 5" Modular Radar Mount
  • Seaview Radar Plate

Garmin GMR 24 xHD3 Dome Radar Key Features

  • 4kW Power Output, 48nm Max Range
  • Scan Averaging Technology
  • Improved Target Size Processing
  • Split-Screen, Dual-Range Display
  • Bird Detection
  • Radome Size: 25.4”, Height: 9.8”
Garmin GMR 24 xHD3 ManualClick Here
