1.44” Display with NMEA 2000 Support!

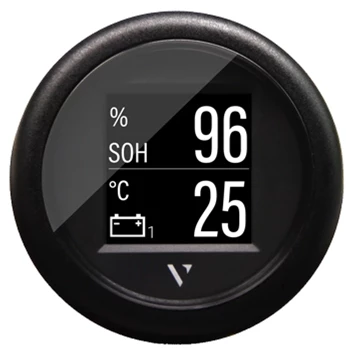

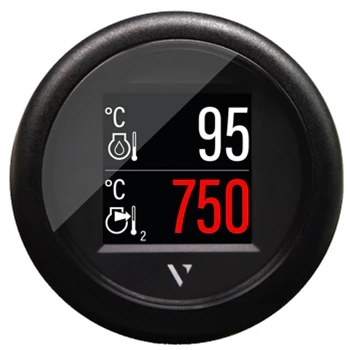

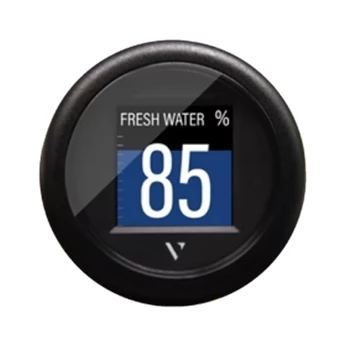

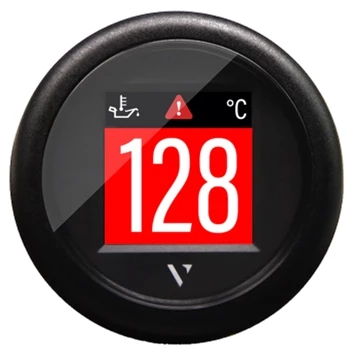

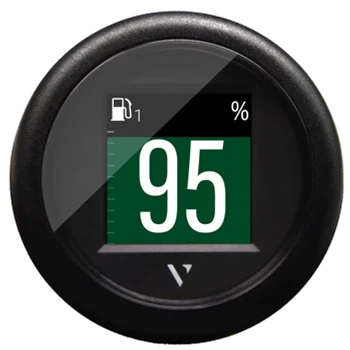

The VLFlex 52 features an all-in-one 1.44’’ round gauge that can display two sets of diesel engine data simultaneously. The display is easily configured using a mobile device and the companion Veratron app. The simple graphic design can be set up in a single or dual layout, pulling from more than 20 sets of data and supports input from analog sensors, NMEA 2000 and LIN 2.0. The VL Flex 52 - NMEA 2000 can display vessel, engine, battery, tank and performance values. It can also be configured to set alarms. When a preset threshold is met and the alarm triggered, the bar graph or numeric value will turn a bright, eye-catching red.
The sunlight readable PMMA lens with an antiglare display offers easy viewing in any condition. The VL Flex 52 is designed to meet demands of commercial use with a waterproof rating of IP67 standards with a flame-retardant polycarbonate 2’’ housing. Installation choices include flush mount or standard spinlock with additional front ring bezel colors available (Sold separately). It connects via an 8-pin Tyco/Hirschmann MQS plug. The unit runs off 12/24V and features over-voltage and reverse polarity protection, only draws 50mA with backlight intensity set to maximum.
Veratron VLFlex 52 NMEA 2000 1.4” Round Display Black Box Contents
Each Veratron VLFlex 52 Comes with:
- VL Flex 52- NMEA 2000
- 52mm Spinlock Nut
- Wiring Harness
- Safety Instructions
- 2-Year Warranty
Veratron VLFlex 52 NMEA 2000 1.4” Round Display Black Key Features
- 1.44-Inch TFT Display, Sunlight Readable.
- Easy Configuration with Smartphone App.
- NFC Interface for Programming.
- IBS Port for Battery Monitoring.
- Front Side Protection Rating IP67.
- Dimensions: 60mm (Outer), 52mm (Mounting Hole)
Veratron VLFlex 52 NMEA 2000 Round Display Manual Click Here
Product Accessories for Veratron VLFlex 52 NMEA 2000 1.4” Round Display Black
Our Price:$179.95
SKU: NM2KSTR
Maretron NMEA 2000 Starter Kit
Maretron is known for their high quality and durable NMEA 2000 parts, this starter kit includes: 2 T connectors, Powertap T, 2 Male Terminators, 1m Drop/Backbone Cable, and a 6m Drop/Backbone Cable. Everything you will need to start your NMEA 2K Network.
Our Price:$24.95
SKU: NM5301
Maretron NMEA 2000 Micro T-Connector
The Maretron NMEA 2000 T-Connector is a required part when adding components to your NMEA 2k network. It is installed on the backbone cable and uses one end of the T-Piece for the drop cable.
Our Price:$29.95
SKU: NM1701
Maretron NMEA 2000 Backbone/Drop Cable 0.5 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 0.5 meter.
Our Price:$48.95
SKU: NM1708
Maretron NMEA 2000 Backbone Cable 10 Meter
This Maretron cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.
Our Price:$39.95
SKU: NM1704
Maretron NMEA 2000 Backbone/Drop Cable 6 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 6 Meter.
Our Price:$31.95
SKU: NM1702
Maretron NMEA 2000 Backbone/Drop Cable 1 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 1 Meter.
Our Price:$31.95
SKU: NM1703
Maretron NMEA 2000 Backbone/Drop Cable 3 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 3 Meter
Our Price:$20.95
SKU: NMFACFST
Maretron NMEA 2000 Field Attachable Female Connector
The Maretron NMEA 2000 Field Attachable Female Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Our Price:$20.95
SKU: NMFACMST
Maretron NMEA 2000 Field Attachable Male Connector
The Maretron NMEA 2000 Field Attachable Male Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Our Price:$49.95
SKU: NM1801
Maretron NMEA 2000 Power-Tee
The Maretron NMEA 2000 Power-Tee is used to power your NMEA 2K network and measures 5 meters in length.
Our Price:$13.95
SKU: NM5801
Maretron NMEA 2000 Female Terminator
A NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Our Price:$13.95
SKU: NM5501
Maretron NMEA 2000 Male Terminator
The Maretron NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
Our Price:$29.95
SKU: NM1702M
Maretron NMEA 2000 Backbone/Drop Cable 2 Meter
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 2 Meter.
Our Price:$24.95
SKU: NMITCMCF
Maretron NMEA 2000 Micro Inline Terminator
The Maretron NMEA 2000 Micro Inline Terminator can be used at the end of a NMEA 2000 backbone to terminate the backbone and still allow for a single device to be used after the terminator.
