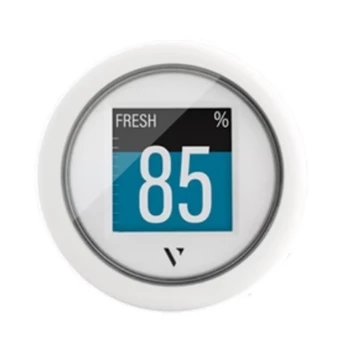

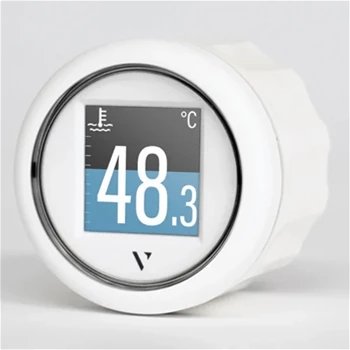

1.44” Display with NMEA 2000 Support!
The VLFlex 52 features an all-in-one 1.44’’ round gauge that can display two sets of diesel engine data simultaneously. The display is easily configured using a mobile device and the companion Veratron app. The simple graphic design can be set up in a single or dual layout, pulling from more than 20 sets of data and supports input from analog sensors, NMEA 2000 and LIN 2.0. The VL Flex 52 - NMEA 2000 can display vessel, engine, battery, tank and performance values. It can also be configured to set alarms. When a preset threshold is met and the alarm triggered, the bar graph or numeric value will turn a bright, eye-catching red.
The sunlight readable PMMA lens with an antiglare display offers easy viewing in any condition. The VL Flex 52 is designed to meet demands of commercial use with a waterproof rating of IP67 standards with a flame-retardant polycarbonate 2’’ housing. Installation choices include flush mount or standard spinlock with additional front ring bezel colors available (Sold separately). It connects via an 8-pin Tyco/Hirschmann MQS plug. The unit runs off 12/24V and features over-voltage and reverse polarity protection, only draws 50mA with backlight intensity set to maximum.
Veratron VLFlex 52 NMEA 2000 1.4” Round Display White Box Contents
Each Veratron VLFlex 52 Comes with:
- VL Flex 52- NMEA 2000
- 52mm Spinlock Nut
- Wiring Harness
- Safety Instructions
- 2-Year Warranty
Veratron VLFlex 52 NMEA 2000 1.4” Round Display White Key Features
- 1.44-Inch TFT Display, Sunlight Readable.
- Easy Configuration with Smartphone App.
- NFC Interface for Programming.
- IBS Port for Battery Monitoring.
- Front Side Protection Rating IP67.
- Dimensions: 60mm (Outer), 52mm (Mounting Hole)
Veratron VLFlex 52 NMEA 2000 Round Display Manual Click Here
