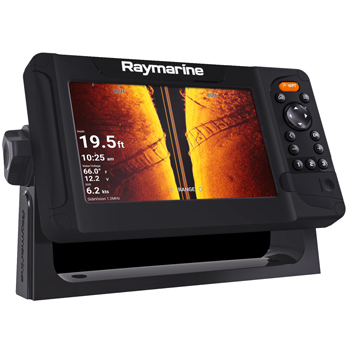

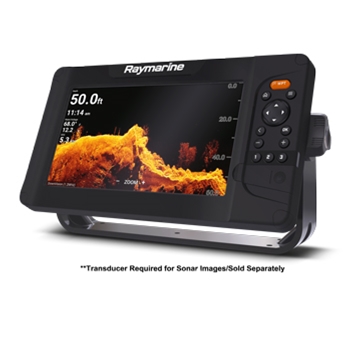

9” GPS/Fishfinder with HyperVision and Navionics+ Charting!
Are you in the market, for a simple to operate GPS/ Fishfinder without all the added bells and whistles of a fully networkable unit? The super bright 9” Element from Raymarine offers a sunlight viewable display, provides you with crystal clear sonar imagery (when paired with the appropriate transducer) and charting views right at your reach. The Raymarine Element 9HV combo unit is a great fit for smaller inshore, nearshore, and inland style boats.
Pair with a compatible HV transducer (available in Transom Mount HV-100, Thru-Hull HV-300TH or Thru-Hull Pair HV-300THP) for CHIRP sonar technology that works together with DownVision,HyperVision, SideVision, and RealVision 3D to bring you unsurpassed sonar functionality. HyperVision 3D sonar and CHIRP work simultaneously with higher frequencies to provide a new level of sonar technology to your boat. The 1.2 MHz HyperVision mode offers higher resolution imaging up to 100’ for better fish targeting and high-speed bottom tracking. Easily switch to a 350kHz CHIRP sonar for longer range and higher resolution imaging up to 600’ below the boat. RealVision 3D sonar offers a better depiction of vegetation, ledges, channel beds, and any contour changes that may affect the type of fishing you are doing.
Detailed Navionics + Maps come Included with this Element 9HV and covers US Coastal waters and US Inland Lakes. The Nav Plus charting from Navionics provide spot soundings, markers, buoys, contour lines, tide information and other data needed for navigation purposes. You can enhance this detail with Navionics Platinum Plus offering 4x higher resolution satellite photo overlay (the best available), full-view XGA panoramic pictures, improved 3D, and FREE high-definition fishing detail! The element is also fully compatible with C-Map 4D charts, enhancing data with 3D Chart View, Satellite images with 2d/3D overlay, Digital Raster Charts with 2D/3D overlay and a guardian alarm. Both Navionics and C-Map offer an extensive chart catalog and are sure to have coverage in your area!
The Raymarine Element keeps you on target with simple keypad controls and an angler centered LightHouse Sport operating system, so you can keep your focus on fishing, not adjusting your GPS/Chartplotter. An oversized waypoint key puts you on your favorite spots, while the Element's industry-unique RealBathy personal depth-map generator even lets you make your own high-definition bathymetric maps on the fly. The quad-core processor is lightning quick and allows you to maneuver the menu options without delay.
The Element 9HV has 8 GB of internal memory with room for 10,000 waypoints, 150 routes, and 15 tracks however this can be expanded by adding up to a 32GB sd card. With NMEA2000 connectivity, you’re able to easily integrate VHF’s, Deading sensors, Engine Data and more!
Raymarine periodically releases software updates in an ongoing effort to provide support for new devices and improve performance on existing electronics. Raymarine's newest software release, Lighthouse Sport v3.9.98 allows users to connect 2 Element displays via SeaTalkng for waypoint sharing (will not support route sharing or moving waypoints between groups). Autopilot support is another feature provided with the v3.9.98 software release. Elements can now output navigation data to a connected autopilot via Seatalkng allowing users to track to a waypoint or route (does not allow for autopilot control. A control head is required). The latest software update also allows Element units to connect to the Wireless Quantum Radar via Wi-Fi (Elements cannot support MARPA). Software updates are free and accessible through Raymarine’s website or direct to your device via WiFi.Software update may be required.
- Raymarine Element 9HV GPS/Fishfinder
- Trunnion bracket with mounting hardware
- Surface mount kit with mounting hardware
- Sun cover
- Power / NMEA2000 1.5m cable
- Documentation pack
- Navionics Plus Mapping
- Up To a 3-Year Manufacturer Warranty
- 9” Rugged GPS with HyperVision Sonar
- NMEA2000 Compatible (DeviceNet Micro-C Connection)
- 10,000 Waypoints, 150 Routes, 16 Tracks
- Detailed Navionics + Maps for Coastal and Lakes throughout the U.S. and Canada
- HyperVision 1.2MHz Sonar with CHIRP, DownVision, SideVision and RealVision Ready – Compatible Transducer Required/Sold Separately
- Size: 11.3"W x 6.3 "H x 2.4“D
|# Of Waypoints||# Of Routes||Track log||Receiver Type||Display Size||Manuals and Instructions|
|5,000||50||10,000 points, 15 saved tracks||10Hz GPS receiver||Color 9" Diag. 800 x 480||Click Here|
Product Accessories for Raymarine Element 9HV with NAV+ Maps
The Maretron NMEA 2000 T-Connector is a required part when adding components to your NMEA 2k network. It is installed on the backbone cable and uses one end of the T-Piece for the drop cable.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 0.5 meter.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 1 Meter.
The Maretron NMEA 2000 Male Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 3 Meter
The Maretron NMEA 2000 Field Attachable Male Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Power-Tee is used to power your NMEA 2K network and measures 5 meters in length.
A NMEA 2000 Female Terminator is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
The Maretron NMEA 2000 Field Attachable Female Connector is used to begin or end the NMEA 2000 Backbone. It should be installed on one side of a Micro-Tee.
This Maretron cable can be used as your NMEA 2000 backbone or drop cable. Length 6 Meter.
Raymarine’s Quantum Q24W Radar is a Wi-Fi Only, 18” Dome Radar with Range Scales from 1/16th to 24 Nautical Miles. Compatible with any of Raymarines MFD’s with Lighthouse II software, the Q24W weighs 50% less than traditional Magnetron Radars and offers very low power consumption.
Protect your Raymarine Element 9 from scratches and sun when not in use!
This Maretron cable can be used as your NMEA 2000 backbone cable. Length 10 Meter. This cable can not be used as a drop cable.
The Maretron NMEA 2000 Micro Inline Terminator can be used at the end of a NMEA 2000 backbone to terminate the backbone and still allow for a single device to be used after the terminator.
Maretron is known for their high quality and durable NMEA 2000 parts, this starter kit includes: 2 T connectors, Powertap T, 2 Male Terminators, 1m Drop/Backbone Cable, and a 6m Drop/Backbone Cable. Everything you will need to start your NMEA 2K Network.
Pair the HV-100 Transom Mount transducer with your Raymarine element for excellent underwater images and water temperature. Using multiple frequencies of 200kHz/350kHz and 1.2Mhz this transducer will provide detail to 900' below your boat!
Pair the HV-300 Thru-Hull transducer pair with your Raymarine element for excellent underwater images and accurate water temperatures. Using multiple frequencies of 200kHz/350kHz and 1.2Mhz this transducer will provide detail to 900' below your boat! *Designed for Boats with over a 6° Deadrise
