Garmin B75H Thru Hull CHIRP 12-Degree Transducer, 8-Pin

Free Ground Shipping!

Garmin B75H Thru Hull CHIRP 12-Degree Transducer, 8-Pin

Garmin B75H Thru Hull CHIRP 12-Degree Transducer, 8-Pin

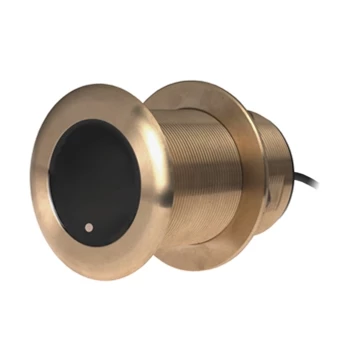

Garmin B75 600W high frequency CHIRP transducer, 8-pin, low profile, bronze thru-hull housing for vessels with deadrises of 8-15 degrees.
  • SKUGAX1163421
  • MAN#010-11634-21
  • ID#: 3743
Our Price:
$709.95
Availability:
Usually Ships in 3-5 Days
Shipping:
Free Ground Shipping!
Condition:
Brand New
  • Mounting Style: Low Profile Tilted Element Thru Hull
  • Deadrise: 12-Degree, Suitable for 8-15 Degrees
  • Frequency Range: High frequency: 130 to 210 kHz, 15-9 Degree Beam Width. Up to 80 kHz of total bandwidth. Provides CHIRP Sonar.
  • Power Output: 600W
  • Max Depth: 214m (700 feet) in ideal water conditions, best case scenario
  • Transducer Functions: Depth and Water-Temperature
  • Cable Length: 33-feet (10M)
  • Transducer Material: Bronze
  • Connector Style: Garmin 8-Pin
  • Ideal for: Fiberglass or Wood Hulls. Stepped, planning or displacement hulls.
  • Not Recommended for: Steel Hulls
    • B75C Manual Click Here
    B75 Dimensions
