Livescope Sonar with 35% Improved Resolution and Less Noise!
See real-time sonar images including structure, bait and fish swimming around your boat with the Panoptix LiveScope Plus Sonar System. Garmin LiveScope imagery is better than ever! The LiveScope Plus System provides 35% improved resolution, reduced sonar artifacts, crisper, sharper images and improved target separation over previous models.

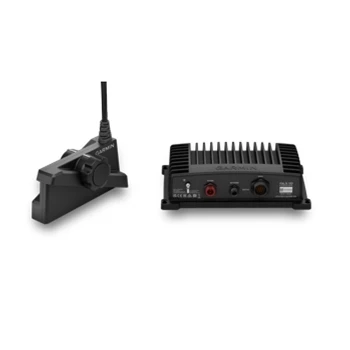

Consisting of the Garmin GLS 10 black box and LVS34 Transducer, the LiveScope Plus system is compatible with a wide range of Garmin chartplotters. The Garmin GLS10 black box connects to your compatible Garmin display through a network connection, while the LVS34 transducer connects to the GLS 10 black box.
Select the mode that best suits your fishing style! The LiveScope Plus System can provide Forward Mode, Down Mode and Perspective Mode with the included mounts. Select Forward Mode for a front and slight down image, Down mode for a picture of what is directly below your boat and Perspective mode for a top-down view. Perspective mode is provided with the use of the included Garmin Perspective Mode Mount for LVS34 Transducers. The LiveScope Plus system also includes a trolling motor shaft and barrel mount.
The LVS34 transducer provides sharper images than previous LiveScope models with fewer artifacts. A 35% improvement on target separation over the previous model allows you to view individual fish targets easier than ever! Rough conditions are no problem for the LVS34 transducer. Its built-in AHRS, Attitude Heading Reference System keeps your sonar image stable for easy viewing even in turbulent waters. Easily distinguish artifacts below your boat with the selection of one of 7 vivid color palettes. Color palettes include Aqua, Caribbean, Lava and more. These palettes allow users to see fish a structure more clearly by improving contrast.
Transducer Specifications
Looking to upgrade your existing Garmin Panoptix LiveScope system to the Garmin Panoptix LiveScope Plus? Upgrading is easy- you may keep your existing GLS10 black box and cabling and simply replace your LVS32 transducer with the LVS34. Purchase just the LVS34 transducer here
The Garmin Panoptix LiveScope Plus is compatible with the following Garmin displays:
Garmin Livescope Plus System Box Contents
Each Garmin Livescope Plus System Comes with:
- Livescope GLS10 Black Box
- Panoptix LVS 34 Transducer
- Perspective Mode Mount
- Trolling Motor Barrel Mount

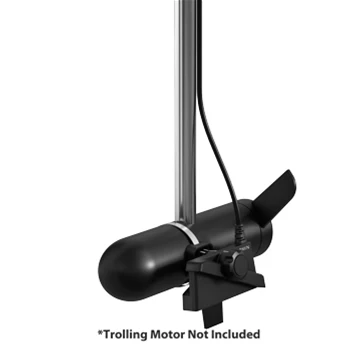

- Shaft Mount
- Power Cable
- 2 Meter Garmin Marine Network Cable (small connector)
- Network Adapter Cable
- Documentation
- Two Year Warranty
Garmin Livescope Plus System Key Features
- View Below and Around your Boat in great detail
- View images with maximum clarity and contrast with vivid color palettes
- 3 Mounting Options Included – Barrel, Shaft and Perspective Mount
- View up to 200’ forward and down
- 135° Beam Width for a much larger coverage area
- GLS 10 Sonar Black Box Size: 9.6"W x 5.9"H x 2.6"D
- LVS 34 Transducer Size: 6.4”W x 3.1”H x 1.9”D
Garmin Livescope Plus Installation Instructions Click Here
Product Accessories for Garmin LiveScope Plus System with GLS 10 and LVS34 Transducer
Our Price:$36.95
SKU: GAX13350
Garmin LiveScope Bulkhead Connector Kit
The Garmin LiveScope Bulkhead Connector Kit allows you to flush mount your LiveScope extension cable for easy connection/disconnection of your LiveScope transducer.
Our Price:$64.95
SKU: GAX1335001
Garmin 3' LiveScope Transducer Extension Cable
Extend the cable length of your Garmin Panoptix LiveScope LVS32, LVS34 or XR LVS62 transducer with this extension cable. Cable is 3 feet long (1 meter).
Our Price:$76.95
SKU: GAX12855
Garmin 10' LiveScope Transducer Extension Cable
Extend the cable length of your Garmin Panoptix LiveScope LVS32, LVS34 or XR LVS62 transducer with this extension cable. Cable is 10 feet long (3 meters).
Our Price:$109.95
SKU: GAX1335002
Garmin 30' LiveScope Transducer Extension Cable
Extend the cable length of your Garmin Panoptix LiveScope LVS32, LVS34 or XR LVS62 transducer with this extension cable. Cable is 30 feet long (9 meters).
Our Price:$22.95
SKU: GAX1253101
Garmin Marine Network Adapter Small to Large
The Garmin marine network adapter cable converts small (male) network cable to a large network connector in order to connect to your compatible Garmin chartplotter.
Our Price:$87.95
SKU: GAX1322804
Garmin Livescope PLUS Transom Mount
The Garmin Livescope stainless steel transom mount allows for the mounting of your Garmin LVS34 transducer to the transom of your boat. Includes spray shield. The LVS34 transducer is included in the Garmin Livescope Plus Sonar System.
Our Price:$29.95
SKU: GAX1322801

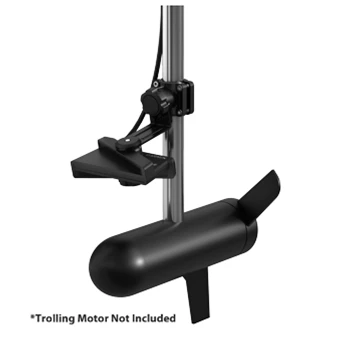

Garmin Trolling Motor Barrel Mount for Livescope Plus and LVS34 Transducer
Pair your Garmin Livescope Plus or LVS 34 Transducer with the Barrel Mount to Mount on the barrel of your trolling motor. Adjustable with molded teeth, this fits all barrel diameters including popular Minn Kota and MotorGuide Trolling Motors.
For Livescope Plus/LVS34 Transducer Only!
Our Price:$24.95
SKU: GAX12531
Garmin Marine Network Cable Small Connector Coupler
Garmin Marine Network Cable Small Connector Coupler, this coupler is used to join two Garmin Marine Network Cables together.
Our Price:$59.95
SKU: GAX1252802
Garmin Small Connector Network Cable 12m
Garmin Small Connector Network Cable 12m. If extending a regular sized network cable, a GAX12531 coupler is required.
Our Price:$29.95
SKU: GAX1322803
Garmin 0 Degree Livescope Plus Pole Mount
Position your Panoptix LiveScope LVS34 transducer on this 0° pole mount for an optimal viewing angle while ice fishing or open water fishing!
For Livescope Plus LVS 34 Transducer Only!
Our Price:$114.95
SKU: GAX13228
Garmin Perspective Mode Mount for Livescope Plus and LVS 34
Pair your Panoptix Livescope LVS34 transducer with the Perspective Mode Mount and see below the surface like never before! Now you can see what's out front and what's around your boat with an overhead view point.
For Livescope Plus/LVS34 Transducer Only!
