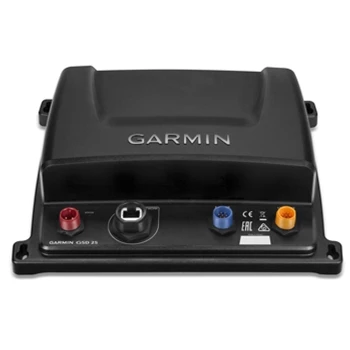

Garmin Sounder Module offering 1kW CHIRP, DownVu and SideVu
A must have Sonar module for any Fisherman with a Garmin Network Setup. The GSD 25 Premium Sonar Module offers dual channel 1kW CHIRP, CHIRP DownVu and CHIRP SideVu providing the clearest underwater images both below and to the sides of your boat.
Simple plug and play connection with any of the Compatible Garmin GPSMAP series MFD's, the GSD25 sonar module can reach depths of 5,000ft dependent on transducer selected. True Dual-Channel 1kW Compressed High-Intensity Radiated Pulse or CHIRP as it is more commonly known enhances target separation, clarity and detail. Distinguish between small or closely spaced fish at any depth down to 5,000 feet. Choose between low/medium, low/high or medium/high optimizing your performance in both shallow or deep water.
Gone are the days where Sonar only shows you what’s below your boat. Now with DownVu and SideVu you get a clear photolike image of fish and structure both below your boat (750ft) and to the left and right (500ft) With a compatible Garmin CHIRP HD-ID sonar and CHIRP DownVü and SideVü scanning sonar transducer all these features can be attained with a single transducer.
- Traditional: 50/200, 77/200, 83/200
- Single Channel CHIRP: 40-250
- Dual Channel CHIRP: 40-250
- SideVü/DownVü: CHIRP 455/800 & CHIRP 260/455
- GSD 25 Sonar Module
- Right-angle power cable (6 feet
- Right-angle network cable (6 feet)
- Mounting hardware
- Documentation
- Two-Year Warranty
- Size:9.9"L x 7.6"W x 2.6"H
- Plug and Play with GPSMAP 74/7600 and 80/8200 Series
- True Dual 1KW CHIRP
- CHIRP DownVu and CHIRP SideVu
- Compatible with Garmin's all in one transducers
- Produces exceptional underwater images
